Spiral stairs CORA model Oslo 00 S 130 cm

Availability: Dostępny
Dispatched within: 21 dni
Delivery: The price does not include any possible payment costs check the delivery methods
Price: $2,864.86 2864.86
quantity kpl.

product unavailable

add to wish list

Description

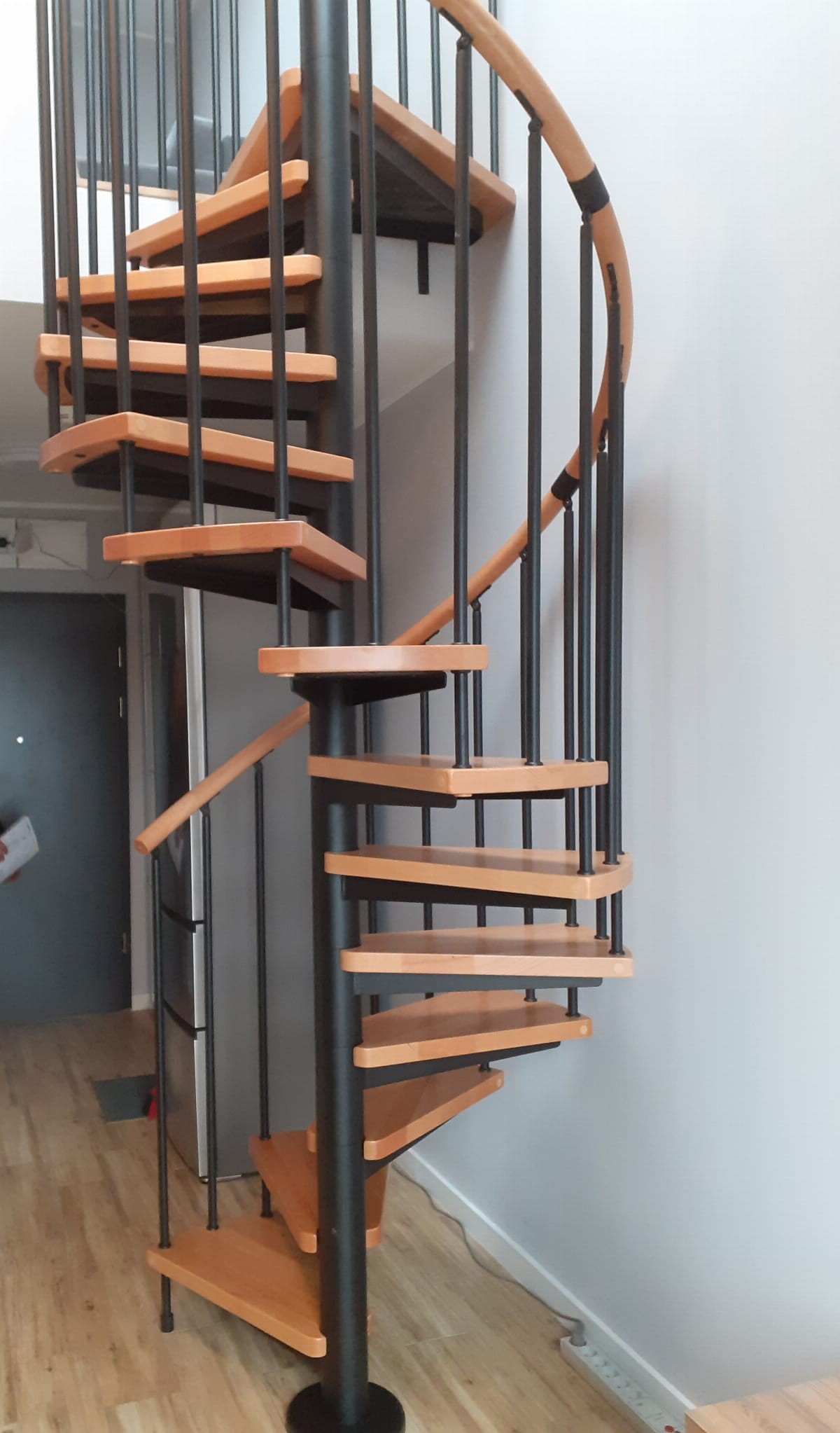

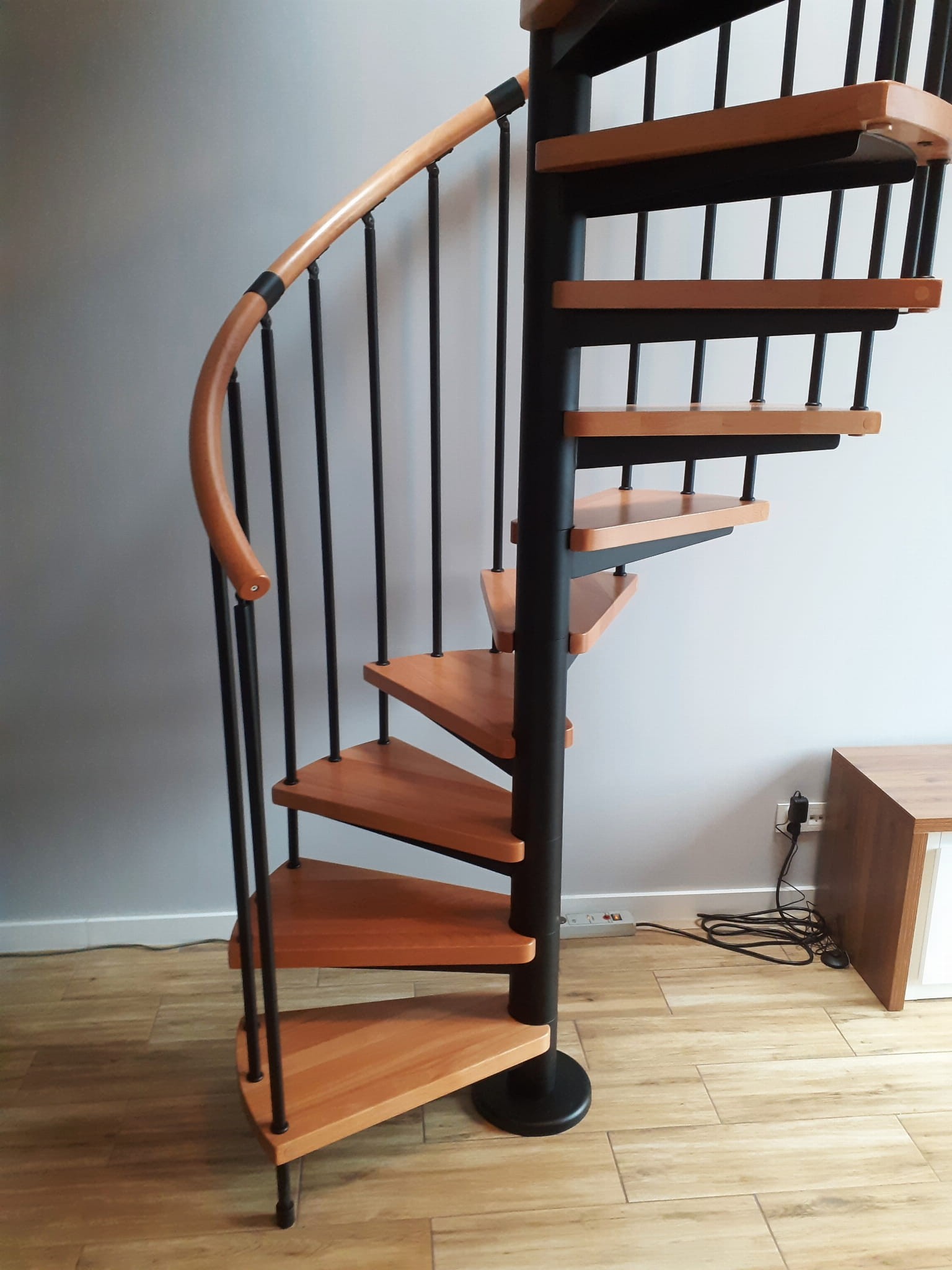

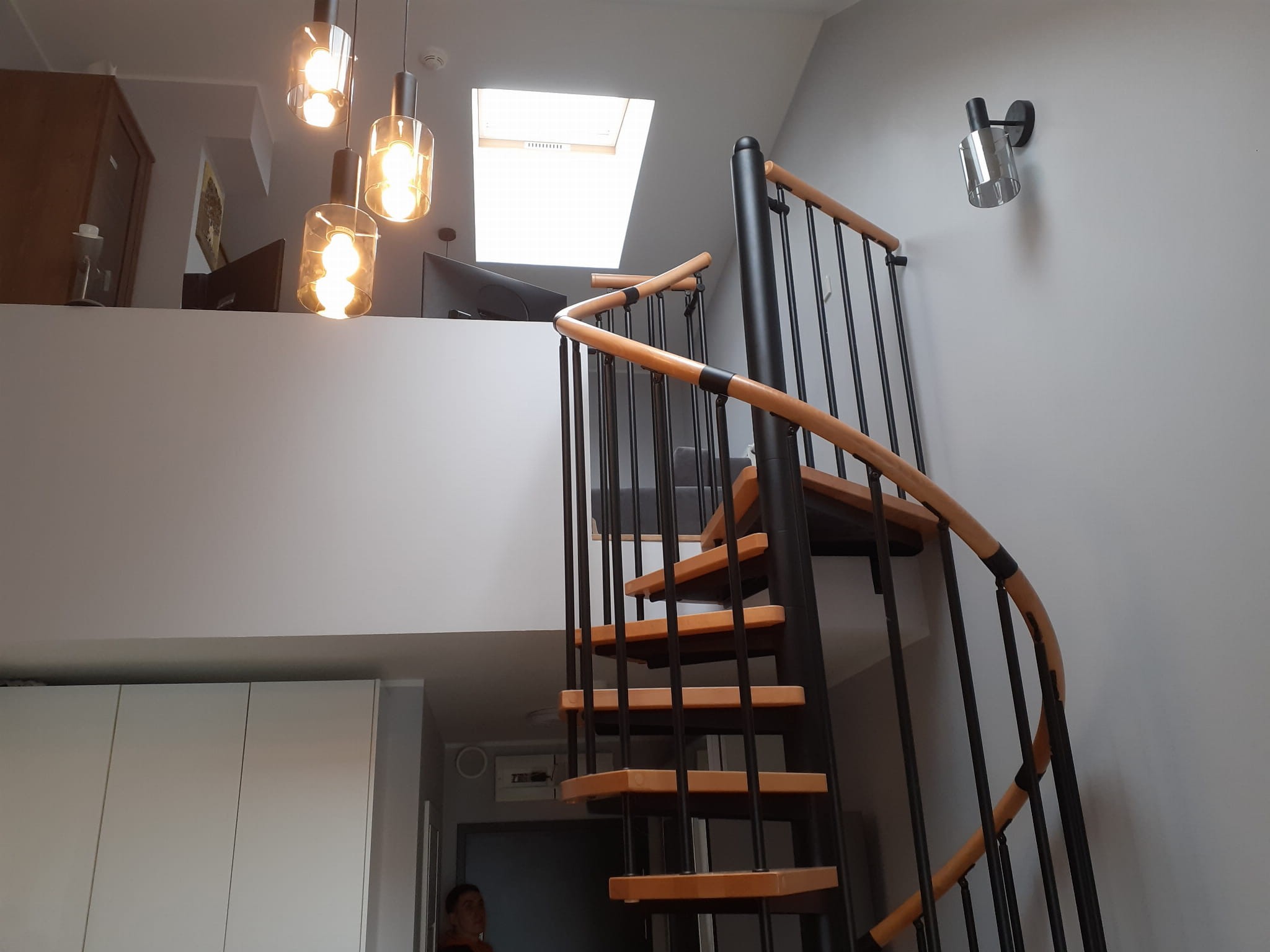

Spiral stairs CORA model Oslo 00 S 130 cm - 14 elements

A set of spiral stairs adapted to the diameter of the opening in the ceiling of 140 cm. The elements are made of solid wood (color to choose from the manufacturer's color palette) and powder coated steel in black matt structure. You can assemble them yourself, but the manufacturer also provides an assembly service for an additional fee.

The offered spiral stairs fit into two types of openings in the ceiling and, depending on them, have different landings. Triangular landings fit in round openings. Triangular and trapezoidal platforms are matched to square openings. The stairs in this model have a right and left treatment. They can be mounted universally, depending on the concept.

When ordering stairs, specify the height of the ceiling, which is the basis for the execution of the order. For unusual interiors, it is possible to make stairs to size on request, based on projections with the actual dimensions of the room.

- Polish manufacturer of winding, spiral and spiral stairs CORA
- Available in stair sizes 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 and larger
- Load capacity: load per step 200 kg.
- Stair treatment: left-handed or right-handed from the first step

Attention !!!
When buying stairs, please specify the height (lower floor / upper floor),
as the height of the step is not adjustable (fixed). We will make stairs to size.

Model Oslo 00 S 130 cm

Technical parameters
The minimum opening in the ceiling - stairs with a diameter of 130 cm can be used for:
- round opening 140 cm,
- square opening 140x140 cm,
- rectangular opening (but the shorter side is 10 cm larger than the diameter of the stairs)
- directly adjacent to the mezzanine

Technical description
Number of elements: 14 pieces (13 steps + 1 platform)
storey height: 280.0 / 345.0 cm
Step height: not adjustable (fixed) from 20.0 to 23.0 cm (made to measure)
Step thickness: 40 mm
Step width: usable 550 mm (between the post and the balustrade),
Type of wood: solid beech

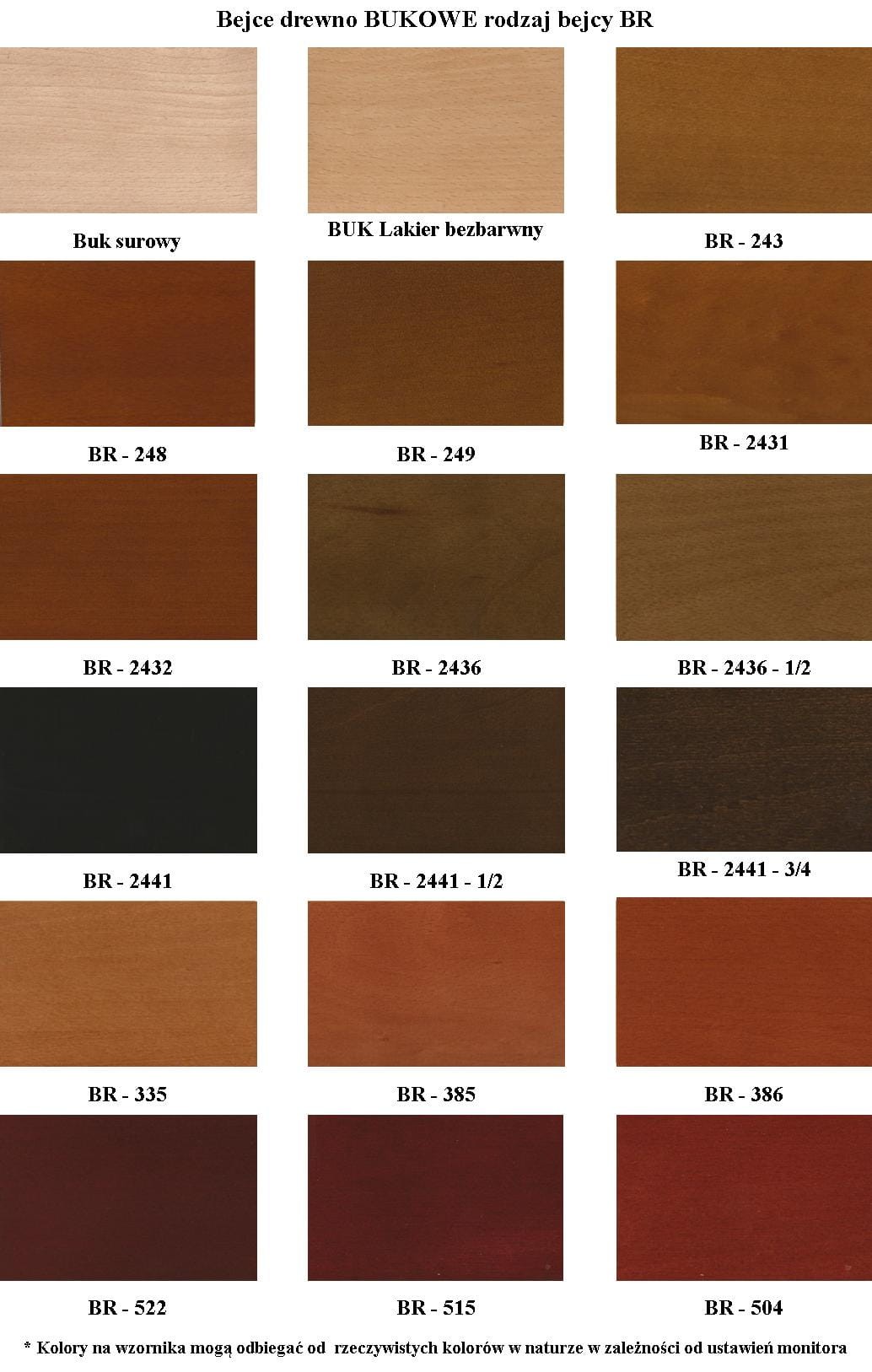

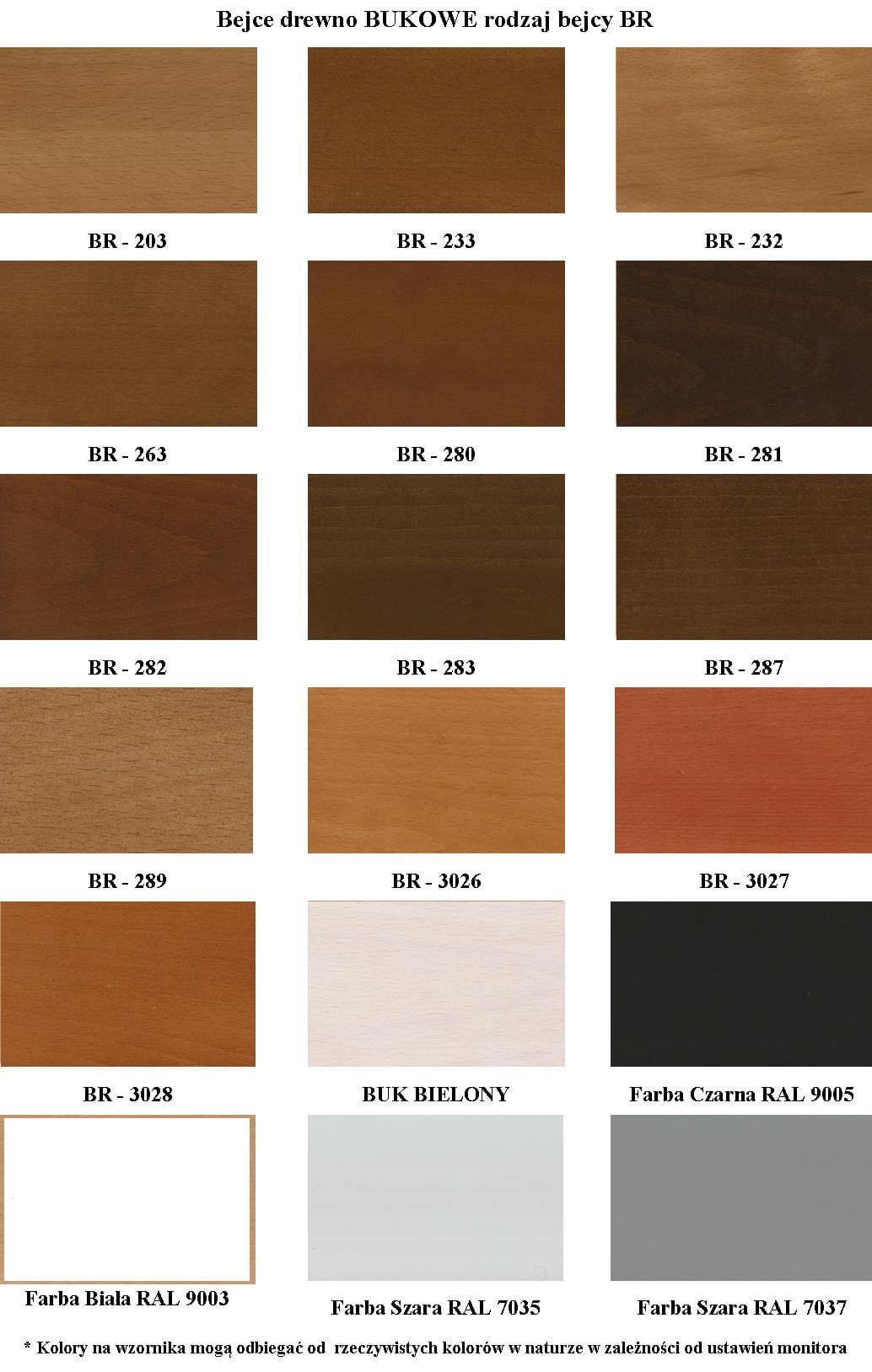

wood color: illustrative photo wood color for natural varnished beech or other colors from the wood color palette or matt paint acc. RAL
Metal color: black matt structure (RAL 9005)

pole and central pole cover: metal
wooden step base: metal

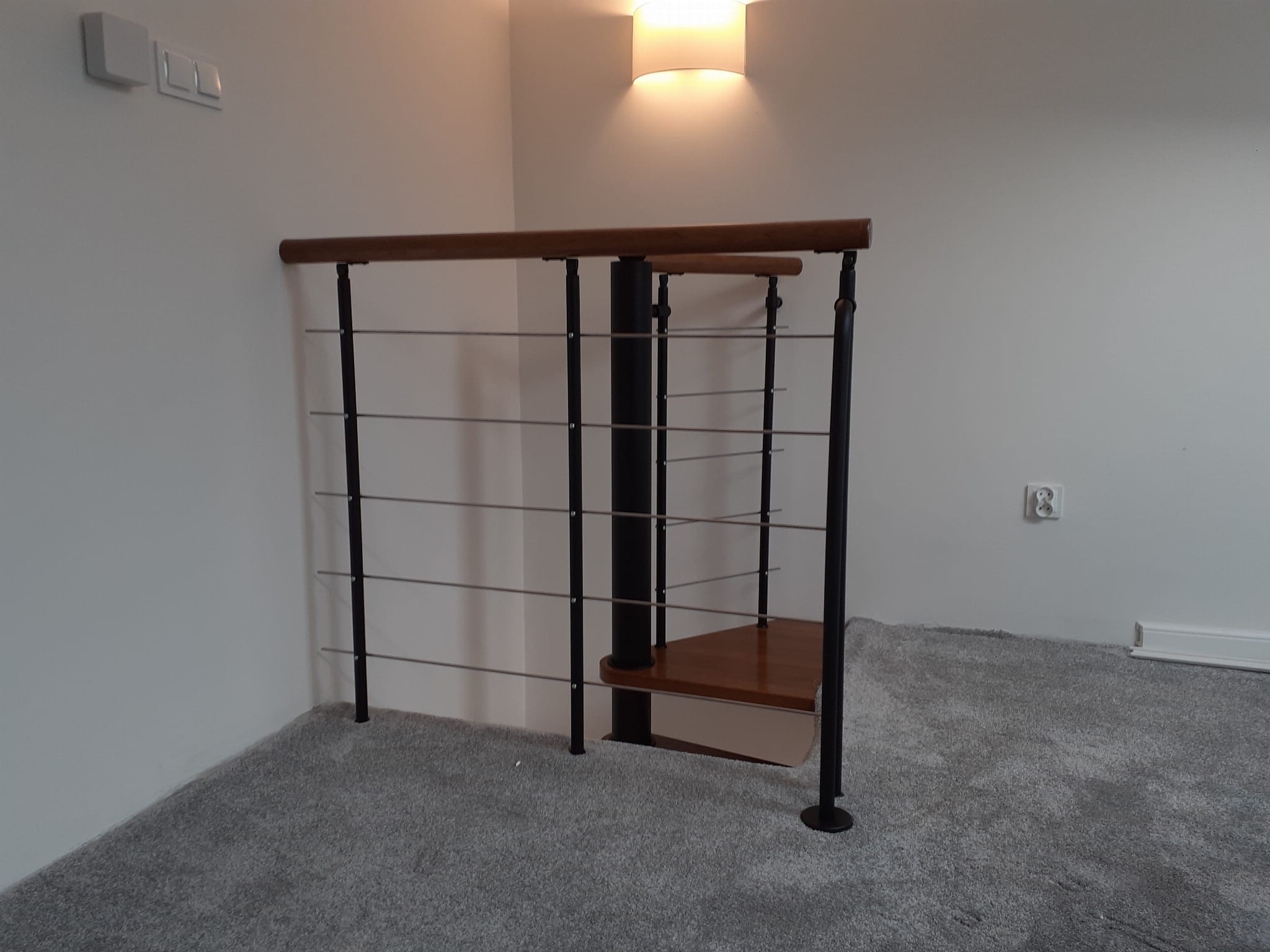

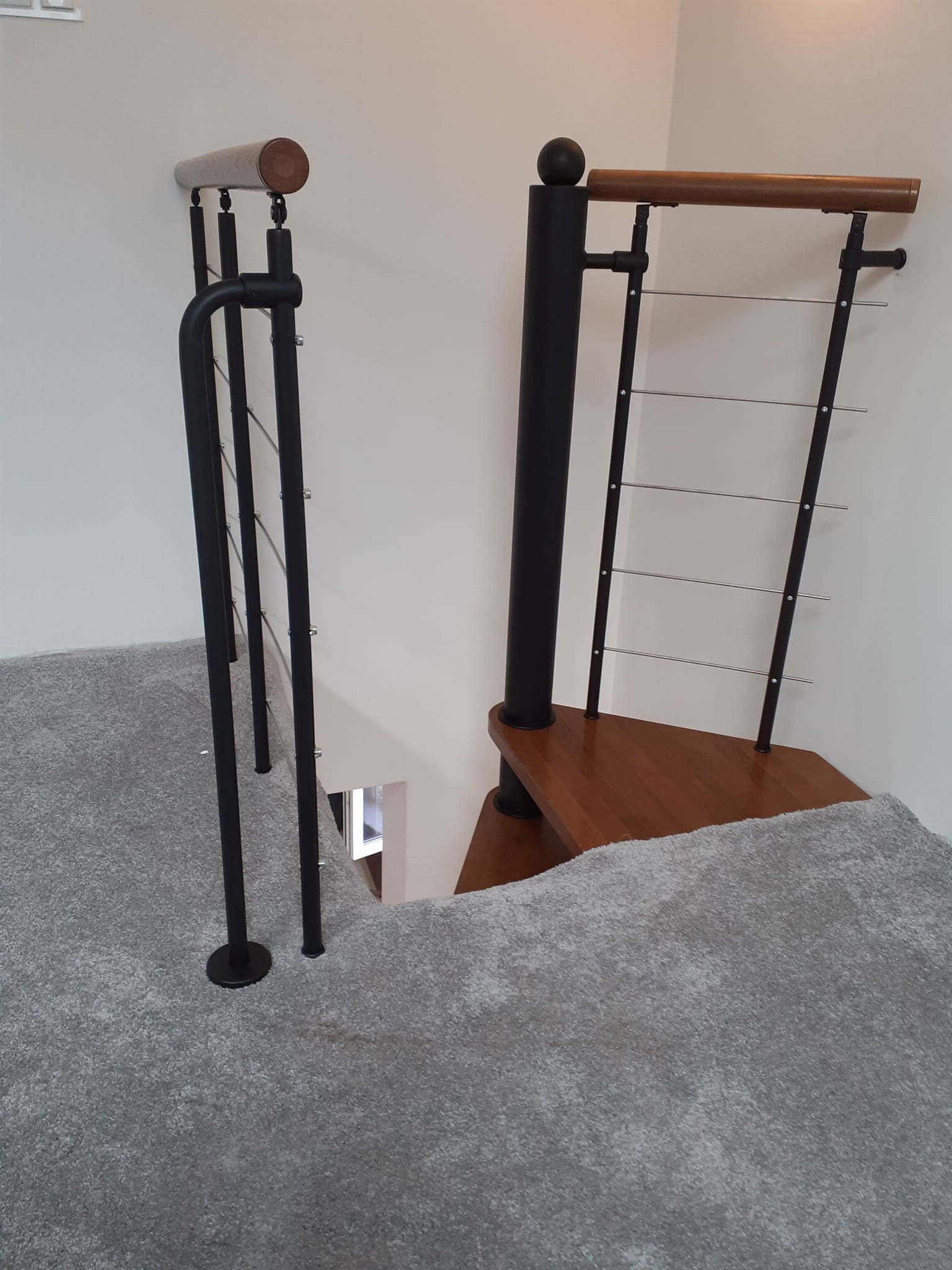

One-sided balustrade + on the landing
posts (metal) 22 mm
recessed into the step
4 pcs. per step
handrail bent wood 50 mm

The platform can be used:

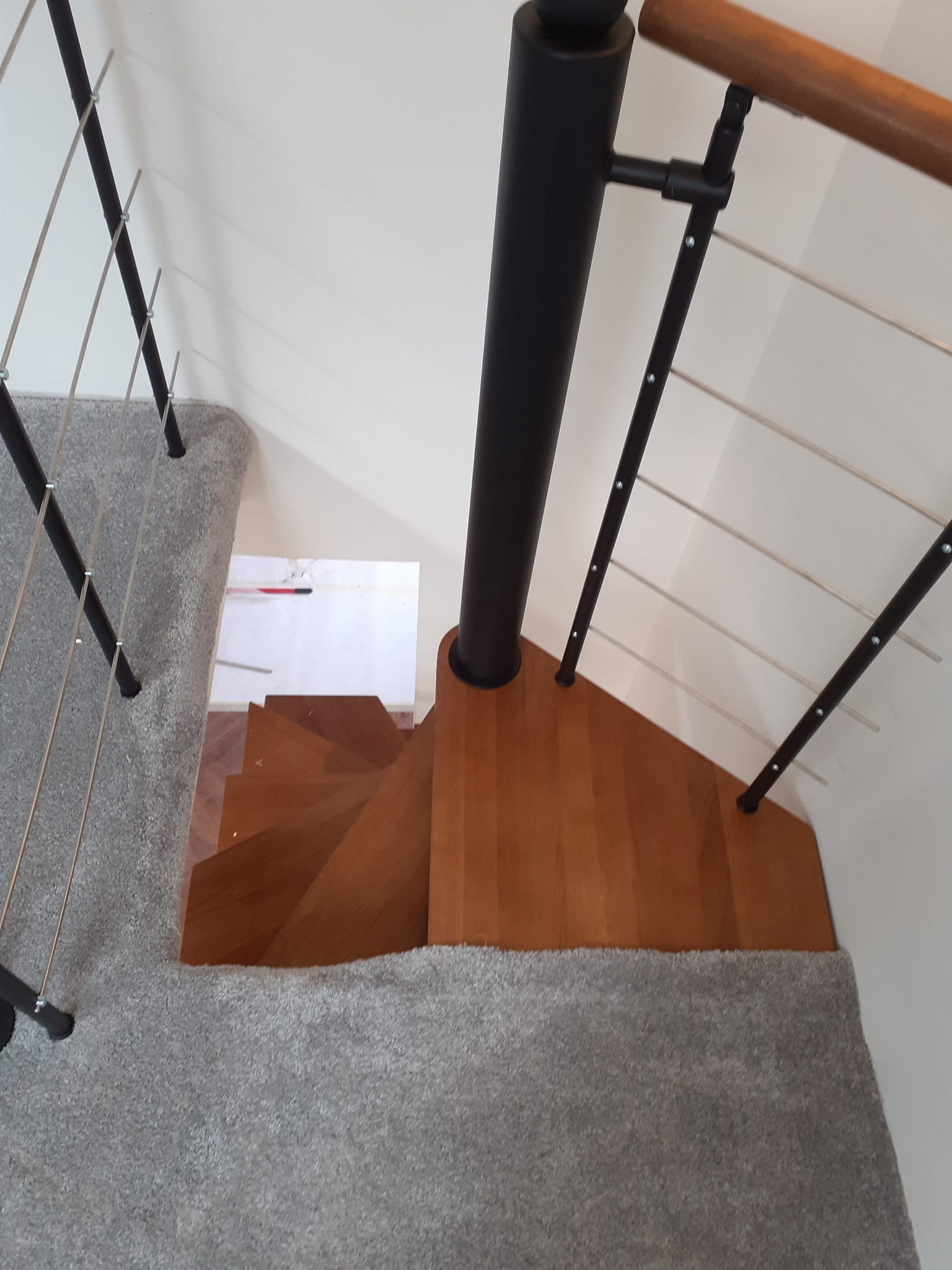

- at height: from 280 cm to 322 cm - (14 elements) / landing flush with the upper floor,
- height: from 300 cm to 345 cm - (14 elements / 15 levels) / platform below the upper floor,

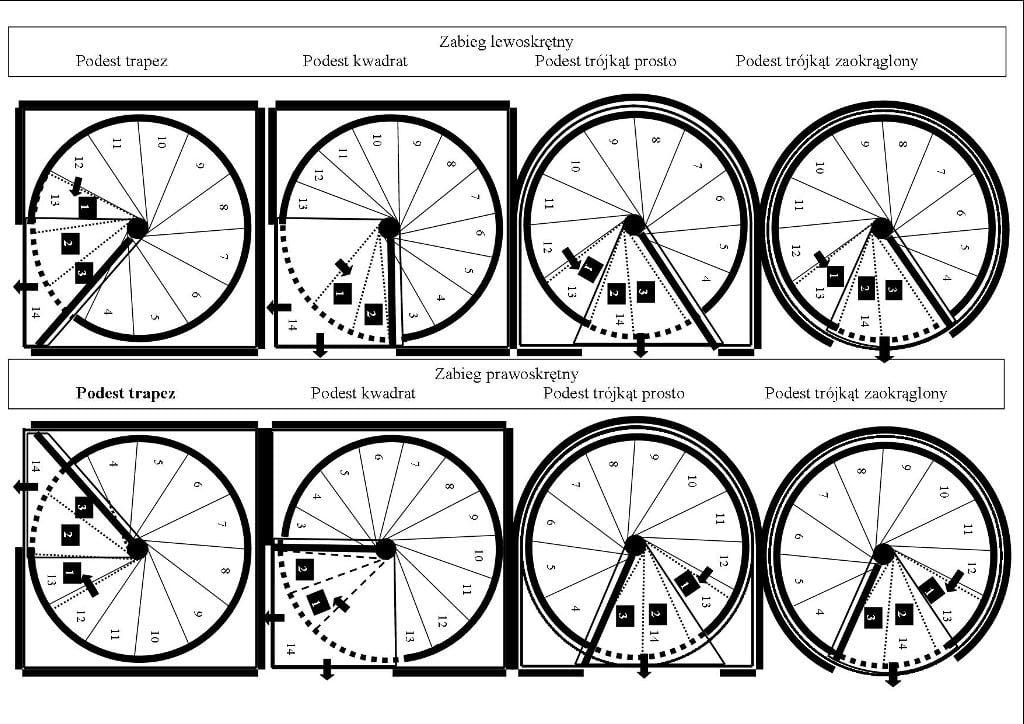

Types of platforms
To the hole:
- round: 140 cm - triangular platform,
- square: 140 x 140 cm - triangular, trapezoidal platform,

Additional information

Non-standard stairs to size to be agreed
If it is not possible to match the stairs according to the diagrams below, we will make custom-made stairs.
We will prepare a design and valuation of stairs based on:
- sent projections of the cross-section of the building with actual dimensions,
- making a sketch with real dimensions,
- taking photos of the ground floor and first floor.
Sending information to the e-mail address: [email protected]
We will prepare a special offer in our online store in the category: On request.

Time limit for completion:
- delivery without assembly 2 / 3 weeks,
- delivery with assembly 4 / 6 weeks,

CONTACT – technical advice in hours: 9.00 – 19.00 hours
Tel/Mobile: +48 509 046 444, Tel/fax: (0048) 65 / 511 92 16, E-mail: [email protected]

Salon and exhibition (Poland) ul. Gostyńska 61, 64-000 Koscian
