CORA modular stairs model Mix extra 03 P L-90 14 elements

CORA modular stairs model Mix extra 03 P L-90 14 elements

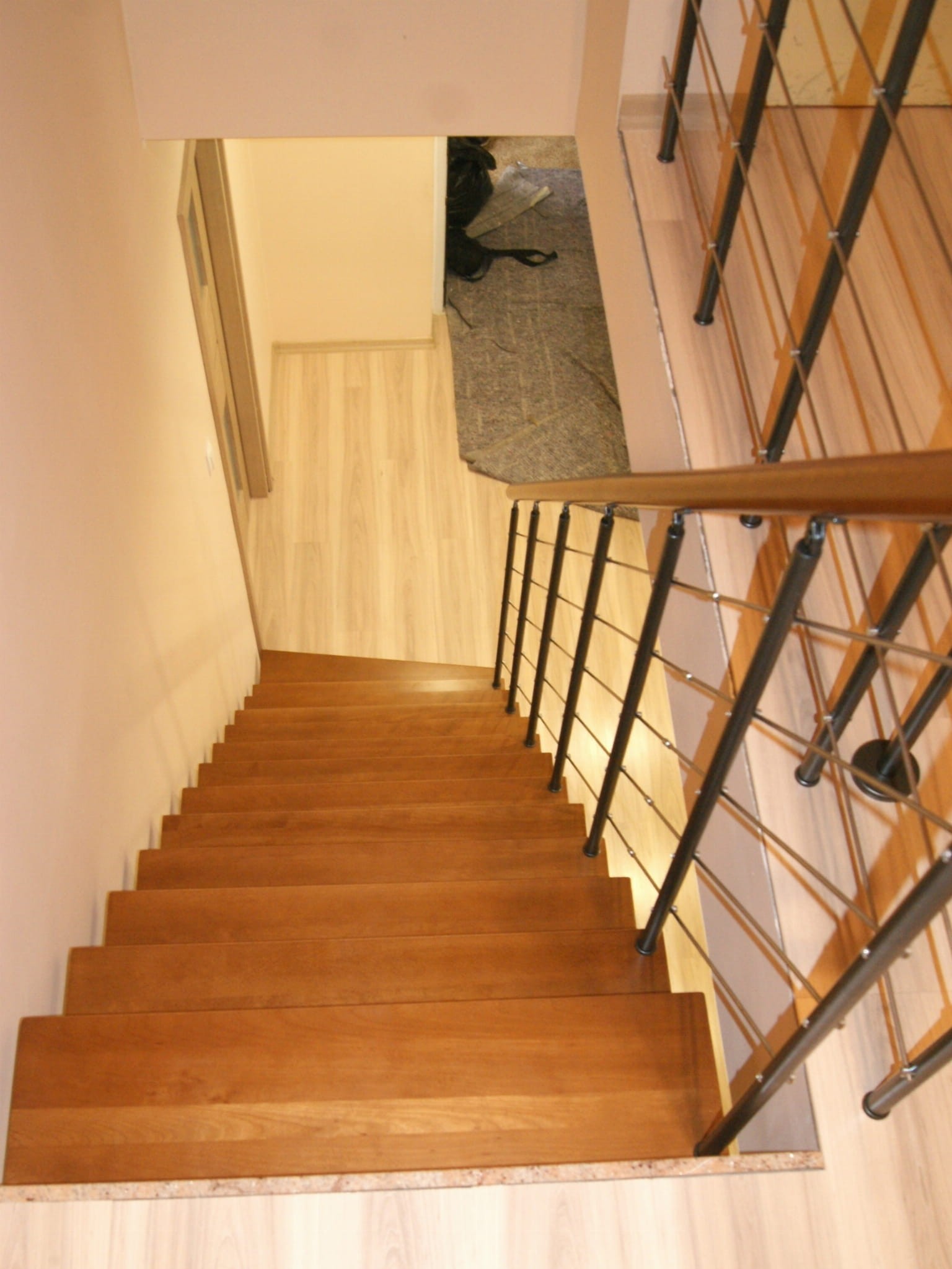

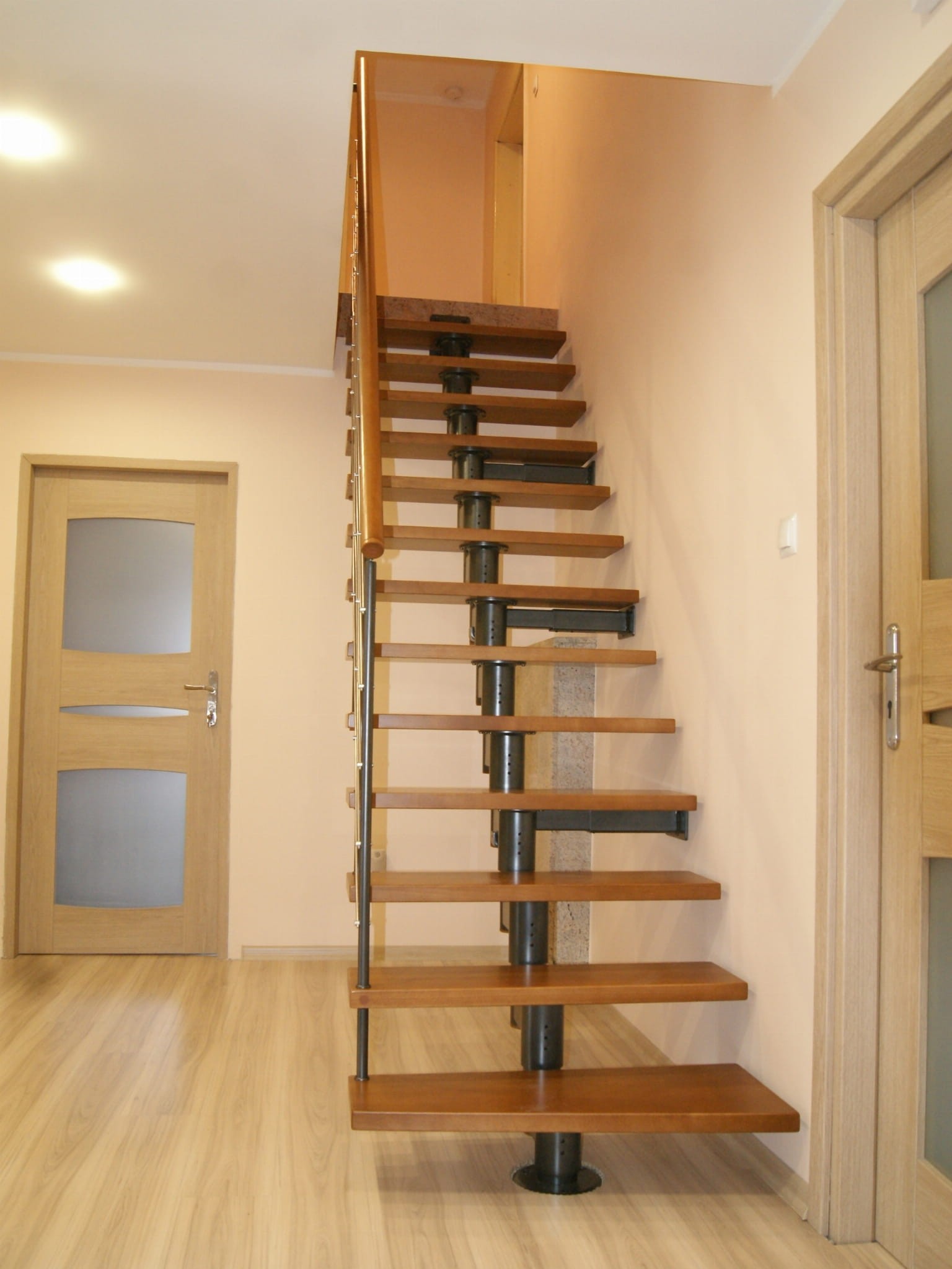

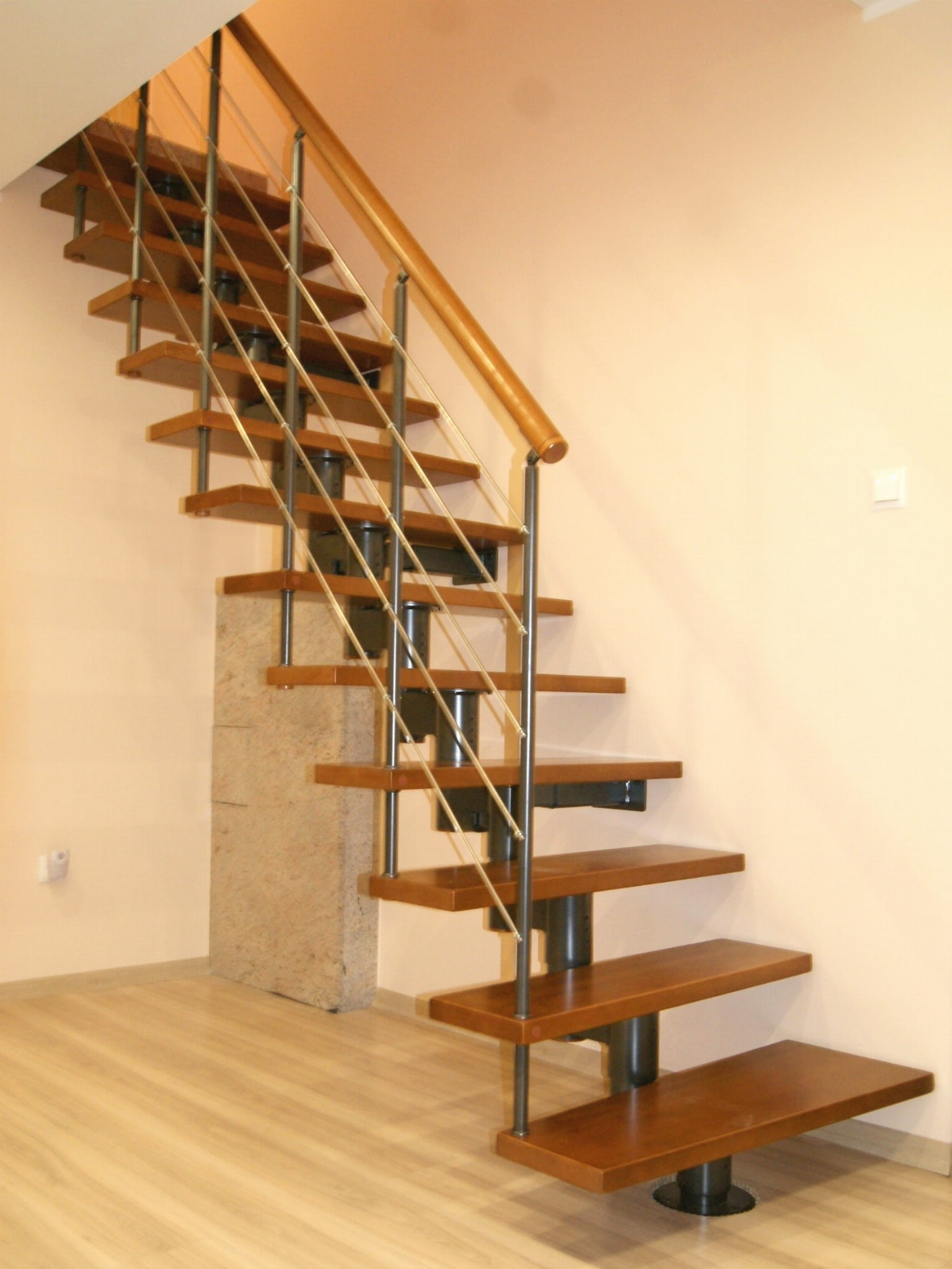

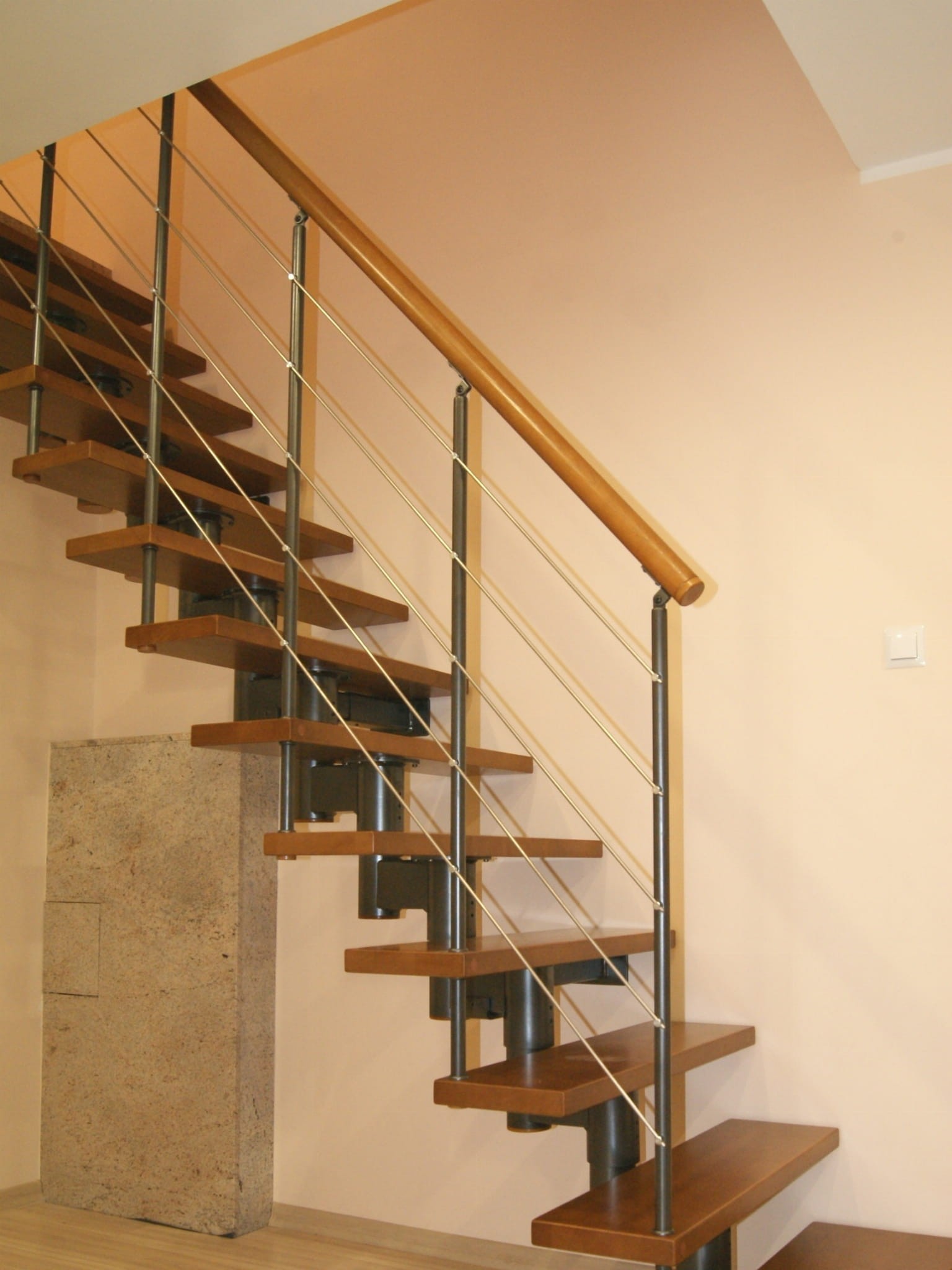

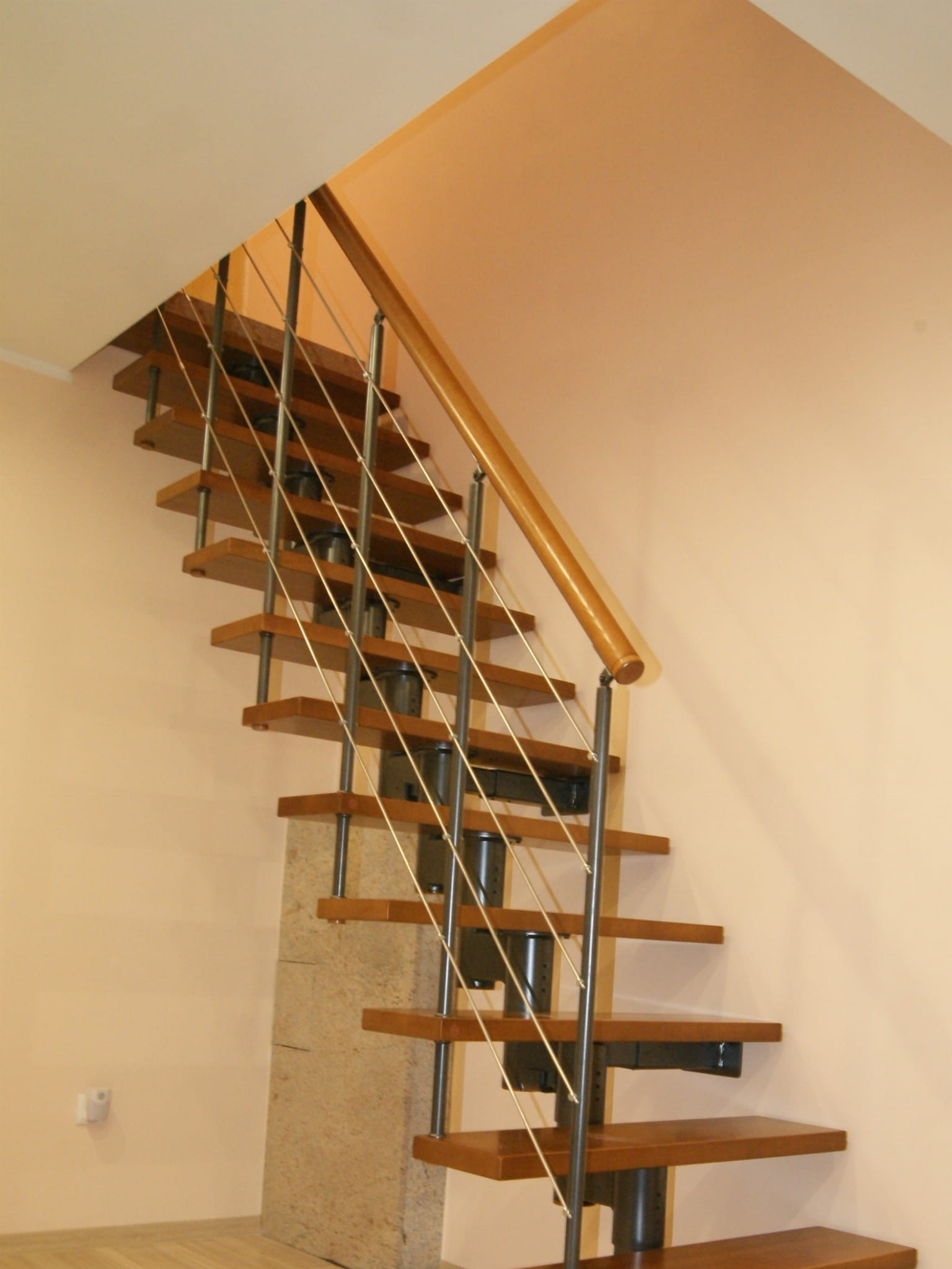

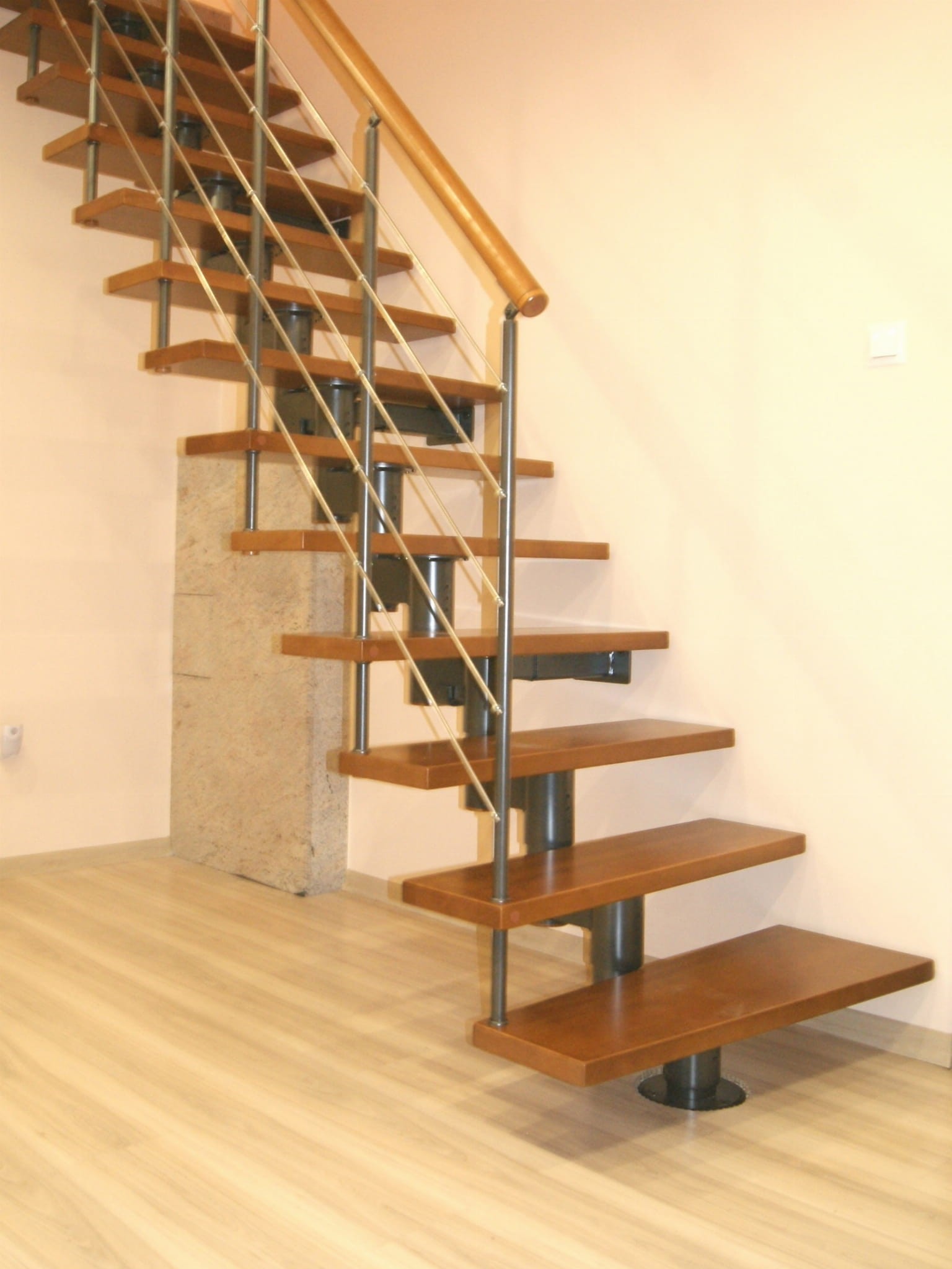

The Mix Extra model is a self-assembly staircase.

The set includes 14 stairs elements, foldable to 15 levels. The elements are made primarily of solid wood (color to choose from the manufacturer's color palette) and powder-coated steel in anthracite graphite. After ordering the service, the manufacturer performs professional installation within the country for an additional fee.

Modular stairs as a modern application in construction replace traditional modern wooden stairs.

Cora stairs are 100% professionalism and satisfaction.

Mix Extra 03 P stairs can be installed in one of 28 systems presented by the manufacturer. The staircase is in its original form, swivel L-90, left or right, as well as an unusual straight procedure - in this case, an appropriate note should be added to the form.

It is recommended to install the stairs against the wall, up to 5 cm from it, which allows for the installation of anchors. If the wall cannot withstand the anchoring, a support column should be used instead. For free-standing stairs, the use of a support column as well as a protective double-sided balustrade is planned, additional options available on request.

Description: parameters, application
Application: internal stairs (inside the building)
Load capacity: maximum load per step 200 kg
Weight: Set of stairs / set of 14 elements 230 kg
Type: single beam stairs (modular)
Type of application: modular stairs, universal installation and use, straight, left-hand, right-hand
Type of rooms: for small, medium and large rooms
Construction type: modular metal 250
Configuration, layouts: possible use of L-90, P stairs in 28 layouts
Balustrade type: filling, polished stainless steel rods (5 pcs.),
Producer: Polish manufacturer of modular metal stairs, CORA system

Technical description
Storey height: from 263 to 345 cm
Number of pieces: 14 pieces steps / 15 levels (top step below top floor)
Step height: adjustable from 17.5 / 23.0 cm
Step size: 310 (250+60) mm
Step thickness: 40 mm

Opening in the ceiling: minimum 1000 x 3190 mm,

Stair width:
- straight treatment P: 900 mm,
- L-90 torsion treatment: 900 / 900 mm
Metal color: anthracite graphite

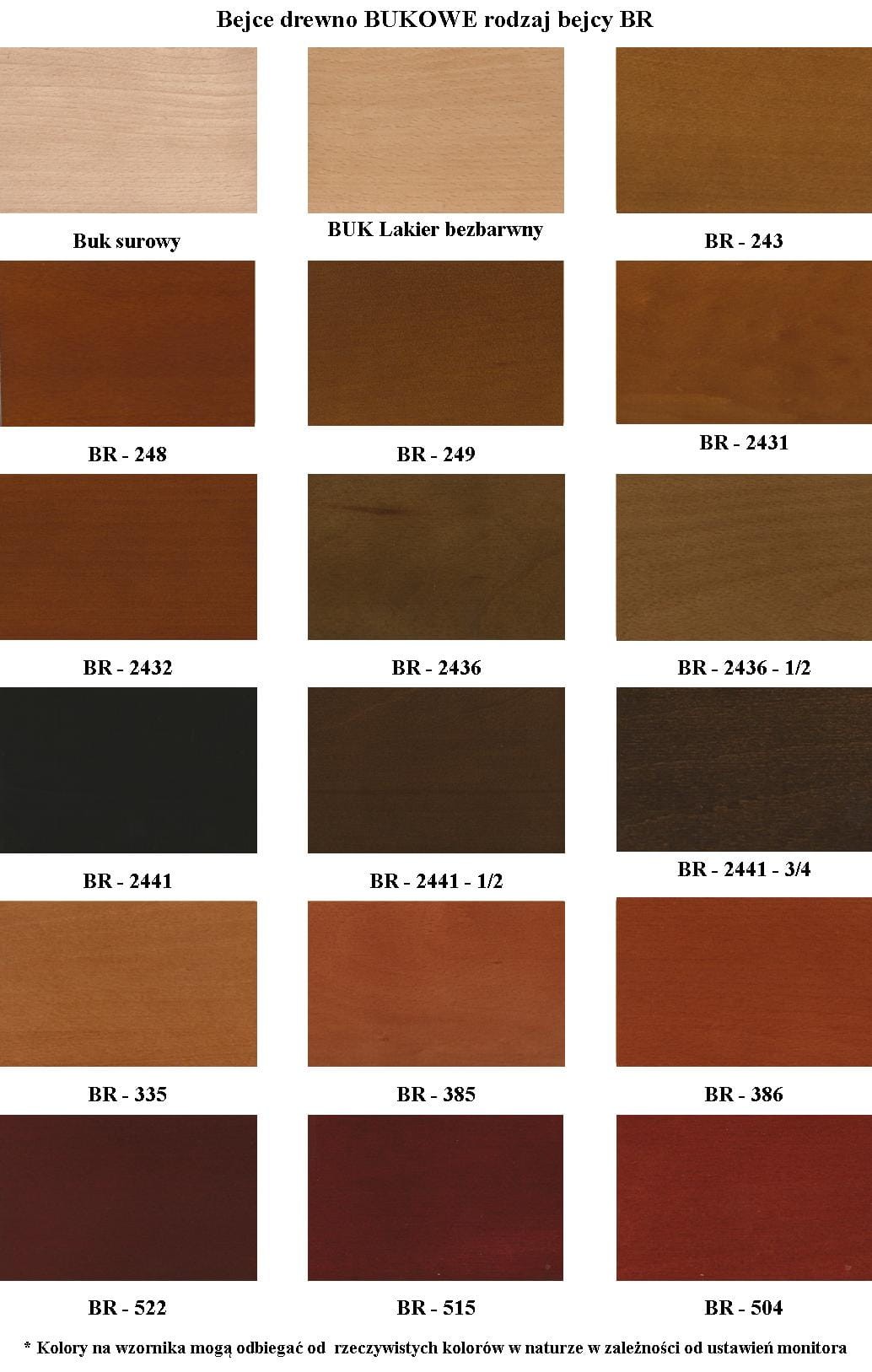

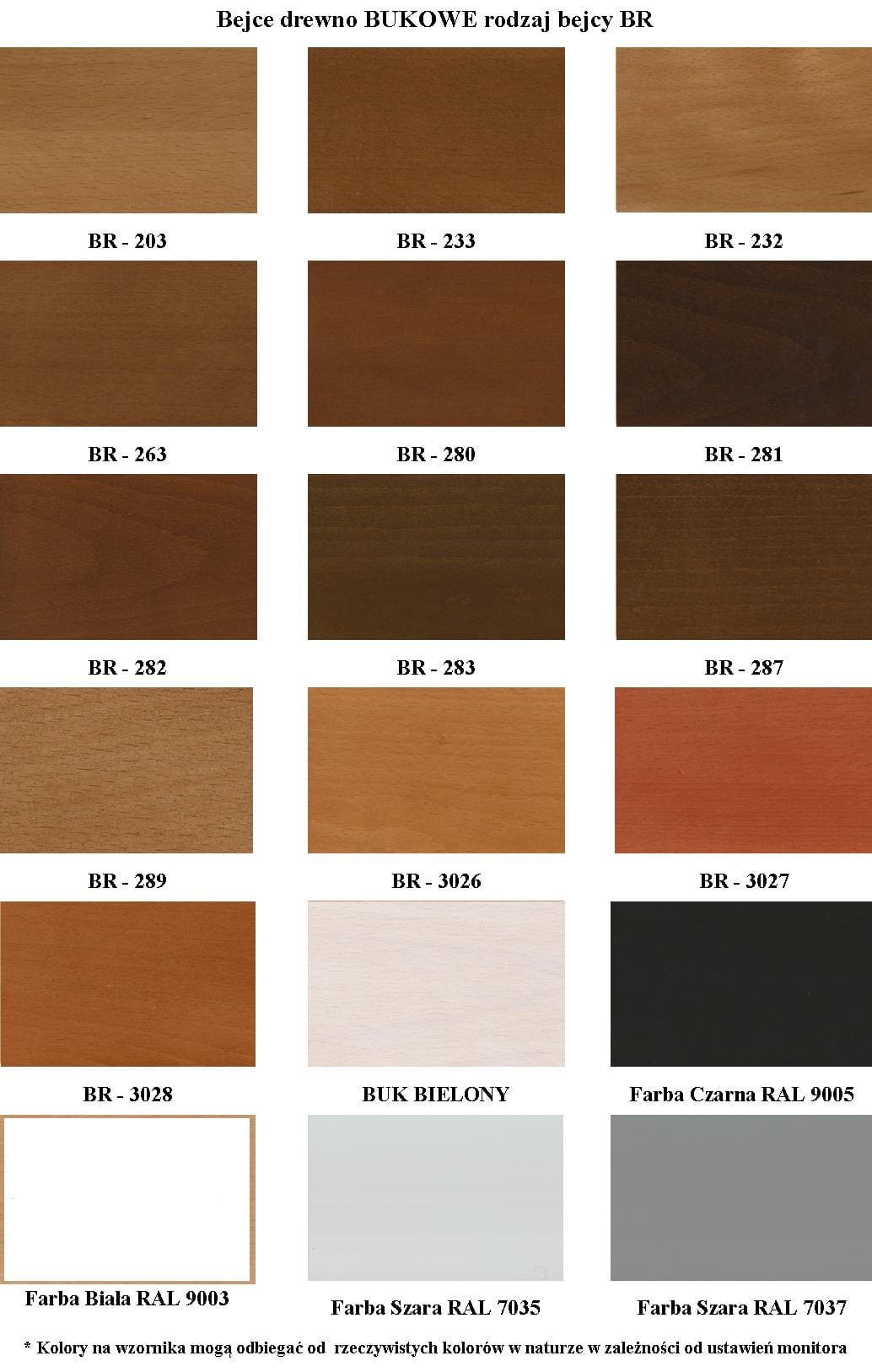

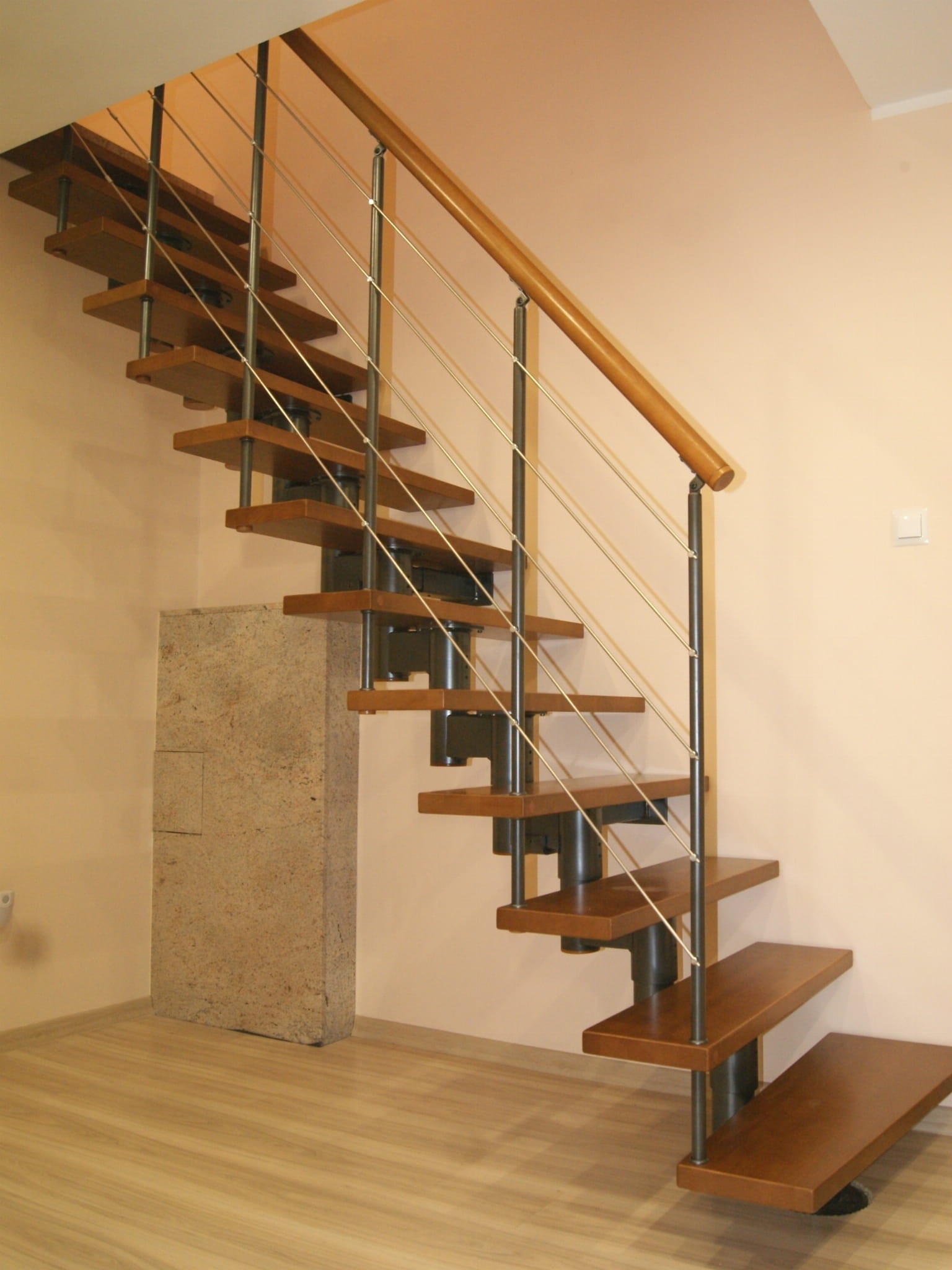

Wood finish (color): Illustrative photo (on beech / BR-243) or other colors from the wood color palette
Construction type: modular metal 250
One-sided balustrade: a typical set includes a one-sided balustrade from the first to the upper step
Balustrade description
- posts (metal) 25 mm,
- filling: polished stainless steel rods (5 pcs.),
- wooden handrail 50 mm,

Example heights and sizes
Floor to floor 193 - 253 cm - 10 steps / 11 heights (- 4 steps)
Floor to floor 210 - 276 cm - 11 steps / 12 heights (- 3 steps)
Floor to floor 228 - 299 cm - 12 steps / 13 heights (- 2 steps)
Floor to floor 245 - 322 cm - 13 steps / 14 heights (- 1 step)
Floor to floor 263 - 345 cm - 14 steps / 15 heights (Standard)
Floor to floor 280 - 368 cm - 15 steps / 16 heights (+ 1 step)

Additional information

Important information regarding the safety of use and use of stairs:
The stairs should partially run against the wall. They cannot be moved away from the wall by more than 5 cm. This is related to the safety of using the stairs. It is necessary to use a wall anchor.
If the stairs are located as free-standing, it is recommended to use:
- support pole,
- balustrade on both sides of the stairs,

Custom-made stairs to be agreed
If the stairs cannot be adjusted according to the diagrams below, we will make custom-made stairs.
We will design and estimate stairs based on:
- submitted building cross-section views with actual dimensions,
- making a sketch with actual dimensions,
- taking illustrative photos of the ground floor and first floor.
Sending information to e-mail: [email protected]
We will prepare a special offer in our online store, in the category: Made to order.

Time limit for completion:
- delivery without assembly 2 / 3 weeks,
- delivery with assembly 4 / 6 weeks,
