Metal stairs Mix Metal U-180 15 elements - ASK FOR PRICE!

Stairs made to individual order - ASK FOR PRICE!

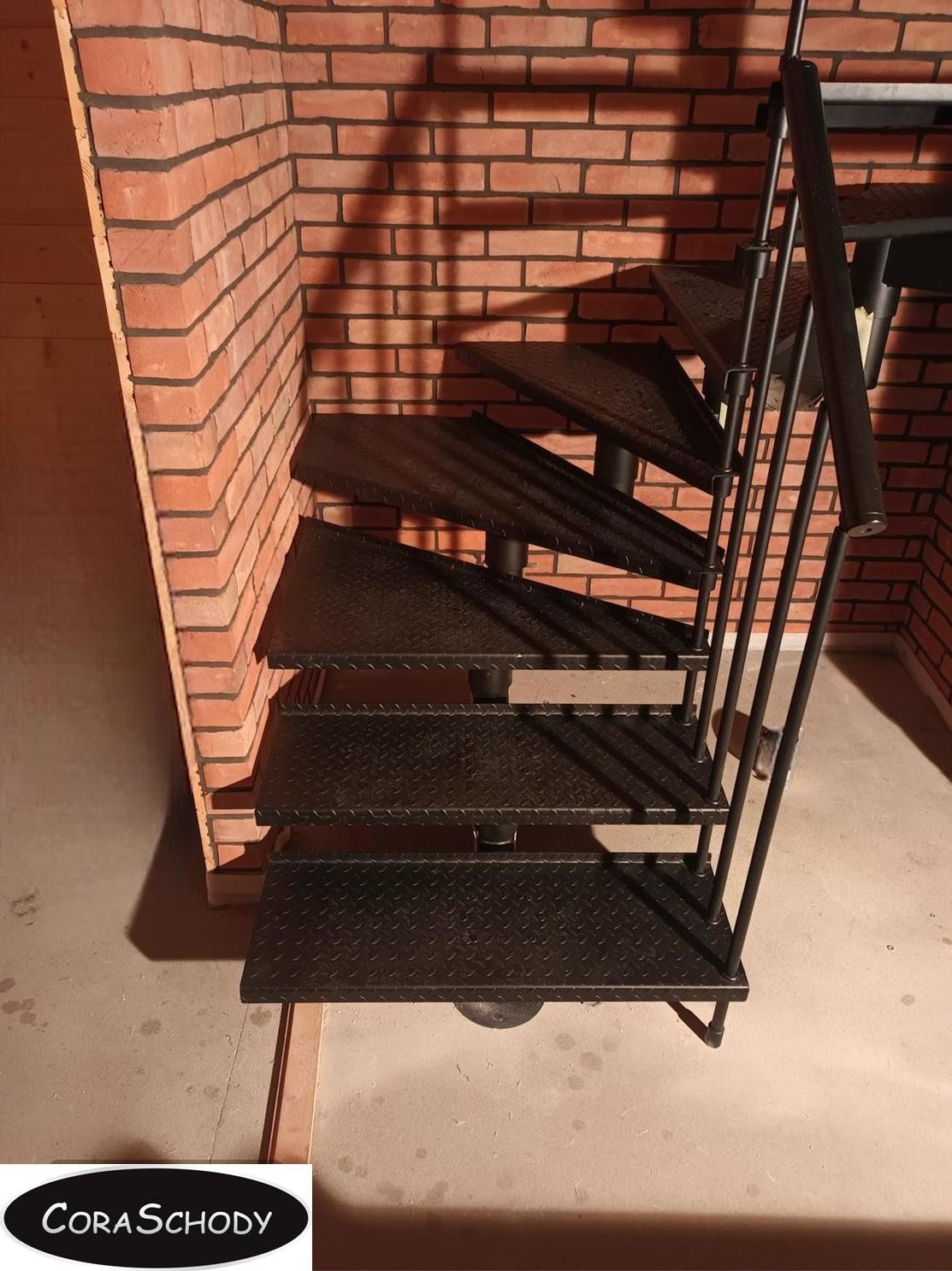

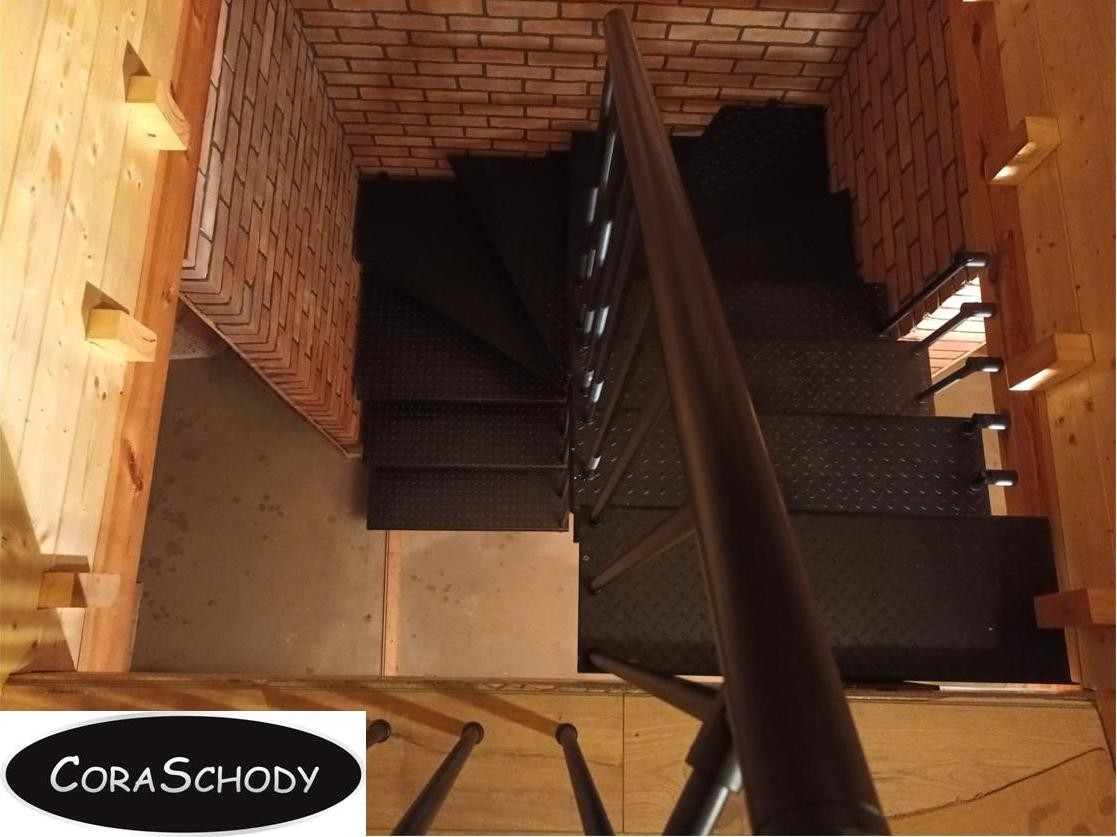

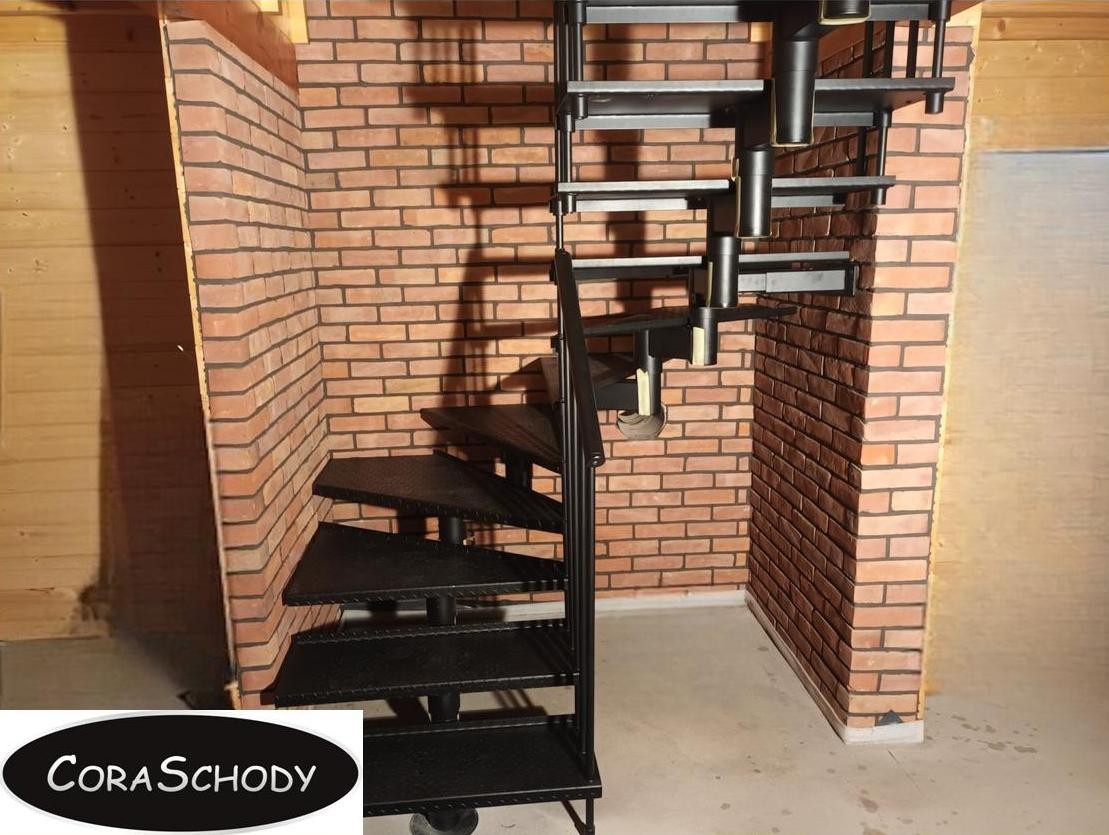

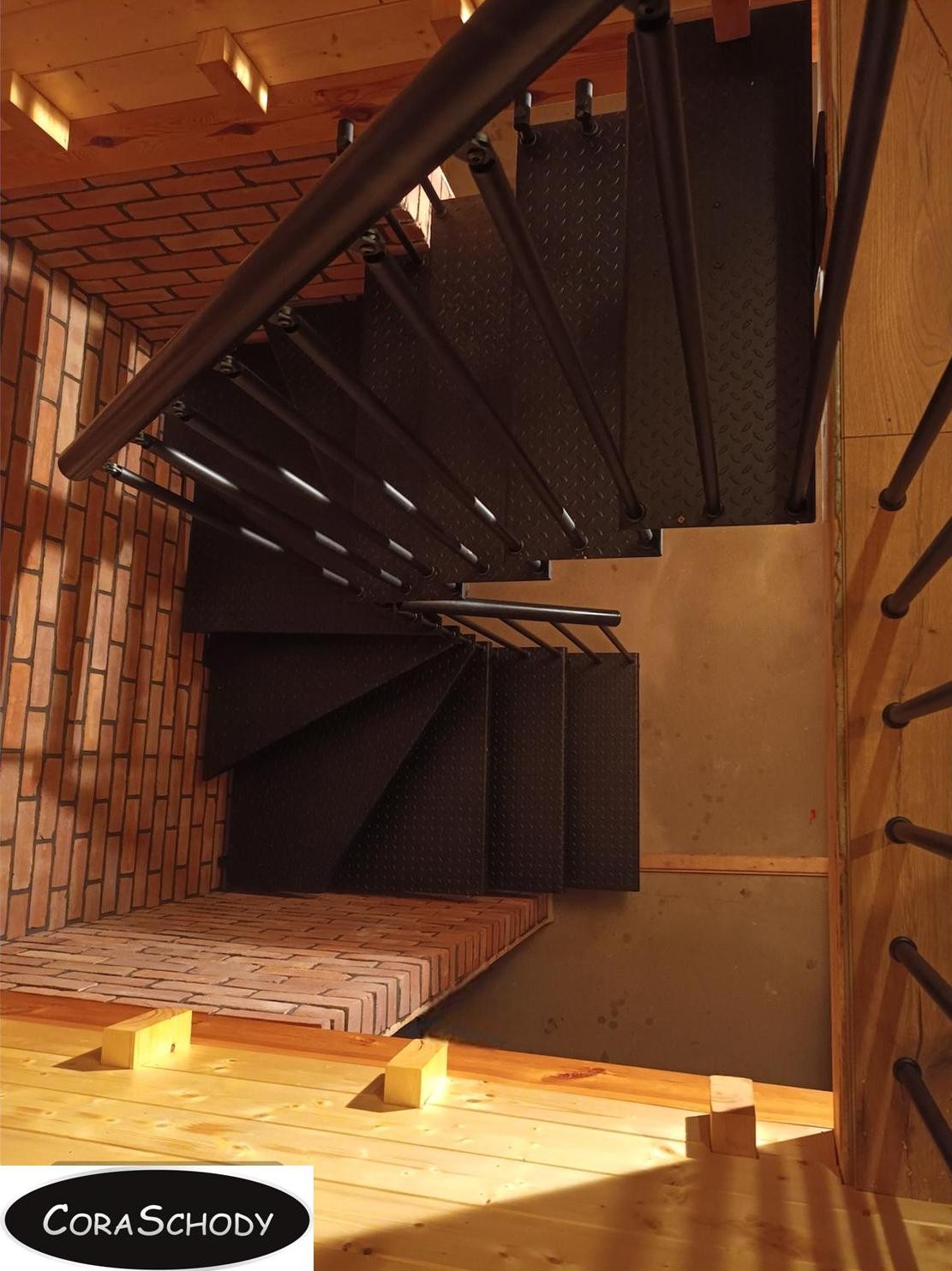

CORA metal stairs, model Mix Metal 180 U-180, 15 elements

Mix Metal stairs are self-assembly stairs.

The set includes 15 stairs elements, foldable to 16 levels. The elements are made of checkered sheet metal and powder-coated steel in a matt black structure (RAL 9005). After ordering the service, the manufacturer performs professional installation within the country for an additional fee.

Metal stairs as a modern application in construction replace traditional modular stairs.

Mix Metal stairs can be installed in one of 72 configurations, all of which are presented by the manufacturer. This model has the original U-180 treatment, both right and left. It is possible to order a simple treatment after adding an annotation to the order form.

It is recommended to install the stairs against the wall, up to 5 cm from it, which allows for the installation of anchors. If the wall cannot withstand the anchoring, a support column should be used instead. For free-standing stairs, the use of a support column as well as a balustrade securing both sides is planned, additional options available on request.

Available colors to choose from:
- black matt structure (RAL 9005)
- silver matt structure (RAL 9006)
- white (RAL 9003)
- satin steel
- anthracite graphite

Description: parameters, application
Application: internal stairs (inside the building)
Load capacity: maximum load per step 200 kg
Weight: Set of stairs / set of 15 elements 260 kg
Type: single beam stairs (modular)
Type of application: modular stairs, universal installation and use, straight, left-hand, right-hand
Type of rooms: for small, medium and large rooms
Construction type: modular metal 180
Configuration, layouts: possible use of stairs in 30 layouts
Balustrade type: vertical balusters (metal) 22 mm
Producer: Polish manufacturer of modular metal stairs

Example heights and sizes
Floor to floor 193 - 253 cm - 10 steps / 11 heights (- 4 steps)
Floor to floor 210 - 276 cm - 11 steps / 12 heights (- 3 steps)
Floor to floor 228 - 299 cm - 12 steps / 13 heights (- 2 steps)
Floor to floor 245 - 322 cm - 13 steps / 14 heights (- 2 steps)
Floor to floor 263 - 345 cm - 14 steps / 15 heights (- 1 step)
Floor to floor 280 - 368 cm - 15 steps / 16 heights (Standard)

Technical description
height: 280 / 368 cm,
number of elements: 15 elements / 16 heights,
step height: adjustable 17.5 / 23.0 cm,
straight step size: 240 (180+60) mm
step thickness: 40 mm

opening in the ceiling: minimum 1460 x 1380 mm

metal color: matt black structure (RAL 9005)
run width:
- U-180 treatment: 700 / 700 / 700 mm
type of steps: checkered sheet,
step color: illustrative photo: checkered sheet / matt black structure (RAL 9005)
Modular construction: 180 metal
One-sided balustrade
vertical balusters (metal) 22 mm
wood handle 50 mm

Additional information

Custom-made stairs to be agreed
If the stairs cannot be adjusted according to the diagrams below, we will make custom-made stairs.
We will design and estimate stairs based on:
- submitted building cross-section views with actual dimensions,
- making a sketch with actual dimensions,
- taking illustrative photos of the ground floor and first floor.
Sending information to e-mail: [email protected]
We will prepare a special offer in our online store, in the category: Made to order.

Time limit for completion
- Delivery of stairs without assembly – 2 / 3 weeks
- Delivery of stairs with assembly – 4 / 6 weeks
