Metal stairs Mix Plus Metal L-90 15 elements - ASK FOR PRICE!

Stairs made to individual order - ASK FOR PRICE!

CORA metal stairs, model Mix Plus Metal 220 L-90, 15 elements

The Mix Plus Metal model is a self-assembly staircase.

The set includes 15 stairs elements, foldable to 16 levels. The elements are made primarily of solid wood (color to choose from the color palette provided by the manufacturer) and powder-coated steel in matt black structure (RAL 9005). After ordering the service, the manufacturer performs professional installation within the country for an additional fee.

Metal stairs as a modern application in construction replace traditional modular stairs

Cora stairs are 100% professionalism and satisfaction.

Mix Plus Metal stairs can be installed in one of 30 configurations, all of which are presented by the manufacturer. This model has the original L-90 treatment, both right and left. It is possible to order a simple treatment after adding an annotation to the order form.

ATTENTION!

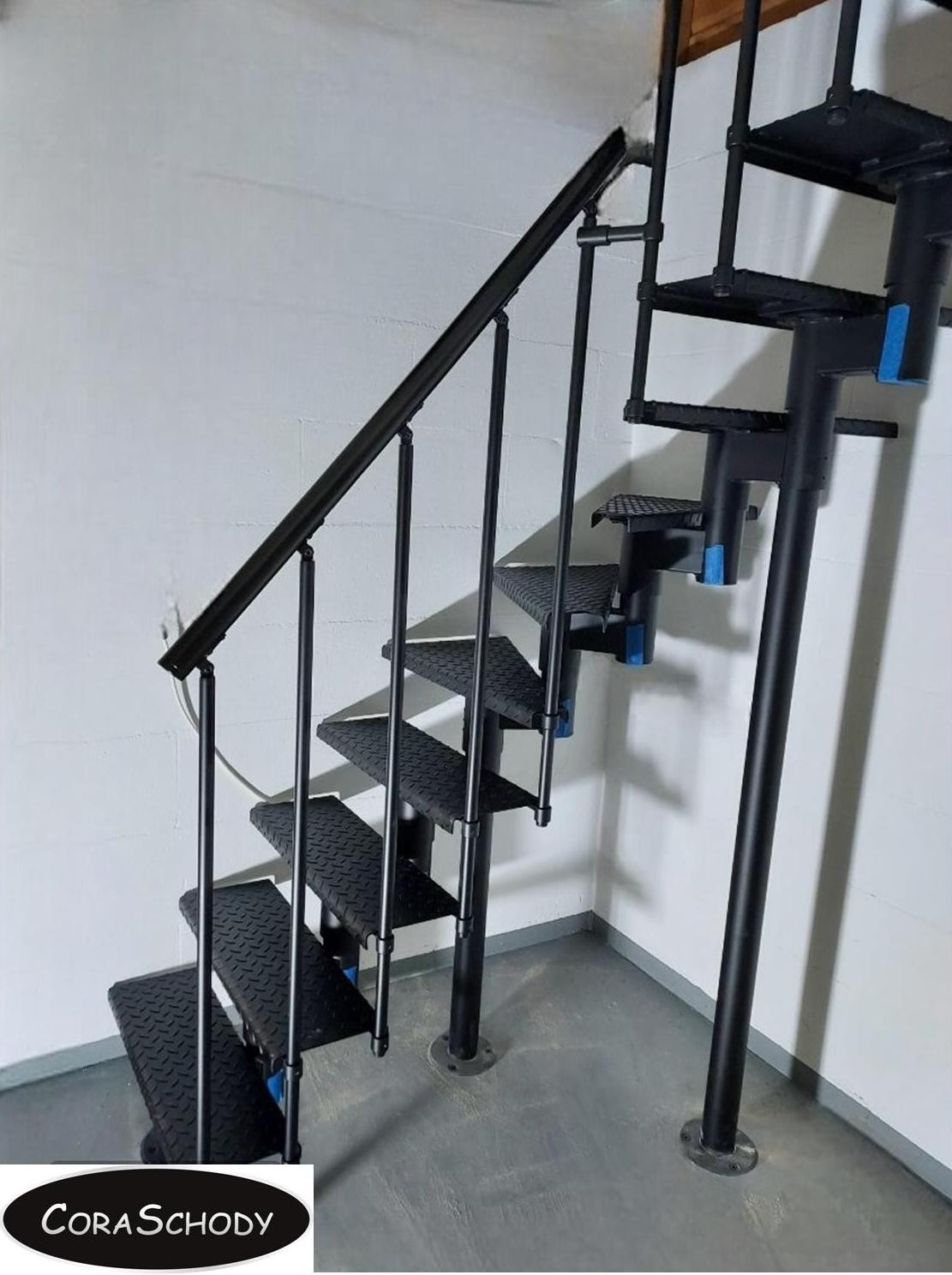

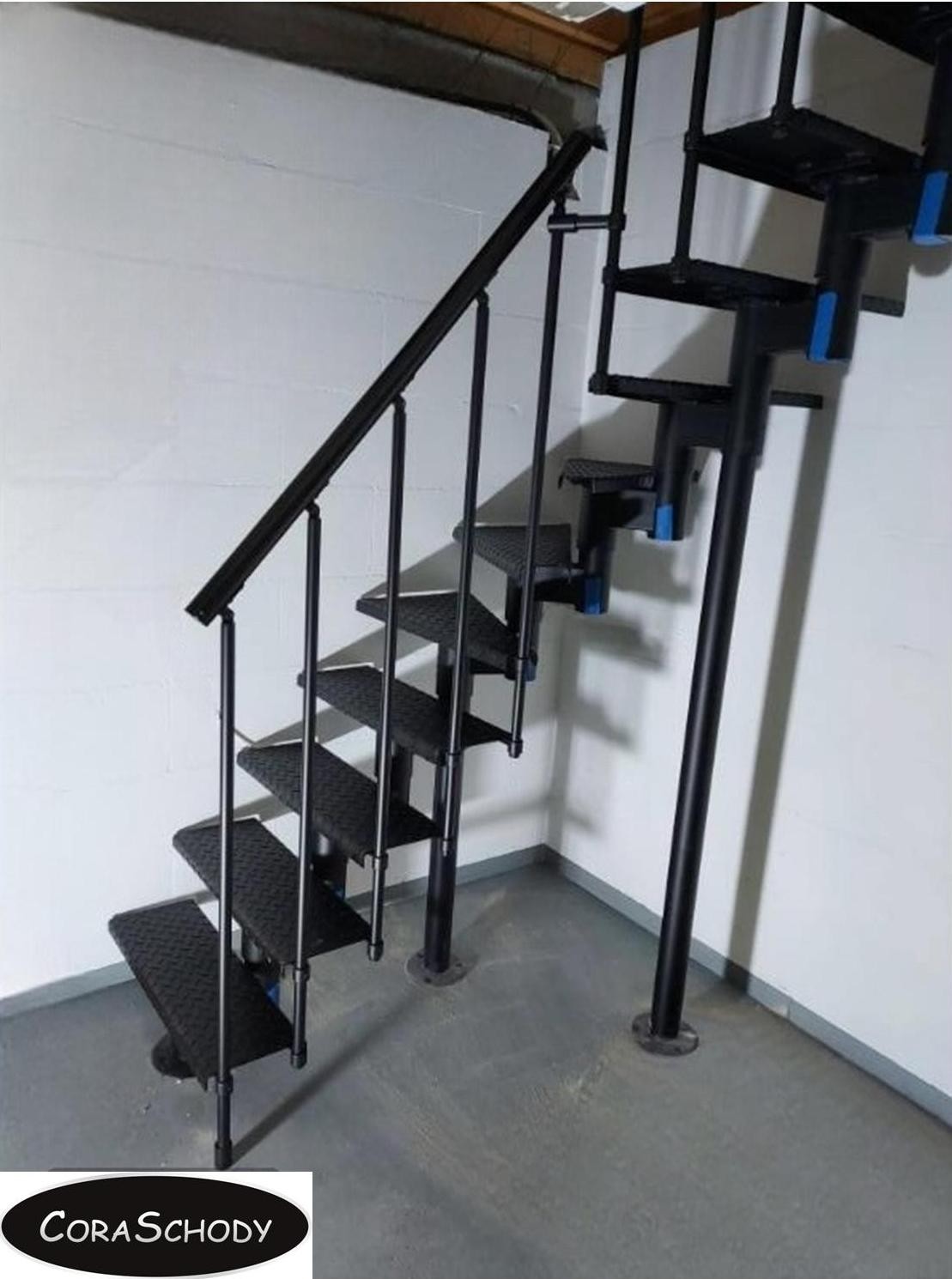

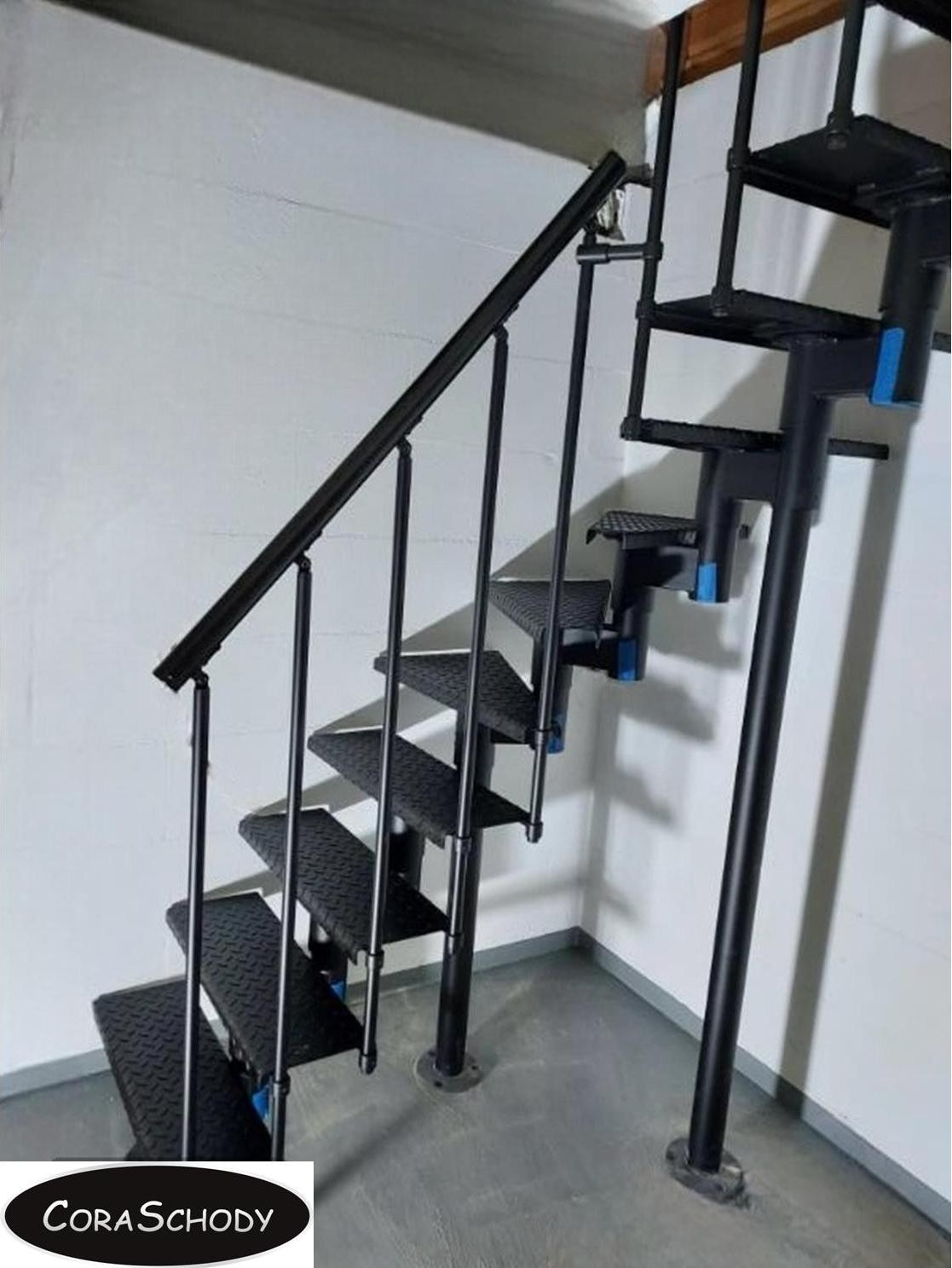

The standard set of stairs does not include support columns and external balustrades as in the photos shown.
Typical anchoring of stairs is only to walls.

Description: parameters, application
Application: internal stairs (inside the building)
Load capacity: maximum load per step 200 kg
Weight: Set of stairs / set of 15 elements 260 kg
Type: single beam stairs (modular)
Type of application: modular stairs, universal installation and use, straight, left-hand, right-hand
Type of rooms: for small, medium and large rooms
Construction type: modular metal 220
Configuration, layouts: possible use of stairs in 30 layouts
Balustrade type: filling / vertical balusters 22 mm
Producer: Polish manufacturer of modular metal stairs, CORA system

Example heights and sizes
Floor to floor 193 - 253 cm - 10 degrees / 11 heights (- 5 degrees)
Floor to floor 210 - 276 cm - 11 steps / 12 heights (- 4 steps)
Floor to floor 228 - 299 cm - 12 steps / 13 heights (- 3 steps)
Floor to floor 245 - 322 cm - 13 steps / 14 heights (- 2 steps)
Floor to floor 263 - 345 cm - 14 steps / 15 heights (- 1 step)
Floor to floor 280 - 368 cm - 15 steps / 16 heights (Standard)

Technical description
Storey height: from 280 to 368 cm
Quantity of pieces: 15 pieces steps / 16 levels (top step below top floor)
Step height: adjustable from 17.5 / 23.0 cm
Step size: 280 (220+60) mm
Step thickness: 40 mm

Opening in the ceiling: minimum 900 x 3040 mm

Metal color: matt black structure (9005)
run width:
- straight treatment P: 800 mm
- L-90 treatment: 800 / 800 mm
type of wood: solid beech,
step color: illustrative photo: checkered sheet / matt black structure (RAL 9005)
Modular design: 220 metal
One-sided balustrade
- Vertical balusters (metal) 22 mm,
- attached to the side of the step
- 3 pieces per step,
- wooden handrail 50 mm,

Additional information

Custom-made stairs to be agreed
If the stairs cannot be adjusted according to the diagrams below, we will make custom-made stairs.
We will design and estimate stairs based on:
- submitted building cross-section views with actual dimensions,
- making a sketch with actual dimensions,
- taking illustrative photos of the ground floor and first floor.
Sending information to e-mail: [email protected]
We will prepare a special offer in our online store, in the category: Made to order.

Time limit for completion
- Delivery of stairs without assembly – 2 / 3 weeks
- Delivery of stairs with assembly – 4 / 6 weeks
