Wooden stairs CORA model Moreno 140 08 L-90 11 elements

Wooden and metal stairs CORA model Moreno 140 08 L-90 11 elements

The Moreno 140 08 model is a self-assembly staircase.

The set includes 11 stair elements, foldable to 12 levels. The elements are made primarily of solid wood (color to choose from the color palette provided by the manufacturer) and powder-coated steel in matt black structure. After ordering the service, the manufacturer performs professional installation within the country for an additional fee.

Moreno 140 08 stairs can be installed depending on the customer's concept. The staircase is in its original form, swivel L-90, left or right, as well as an unusual straight procedure - in this case, an appropriate note should be added to the form.

Description: parameters, application
Application: internal stairs (inside the building)
Load capacity: maximum load per step 120 kg
Weight: Set of stairs / set of 11 elements 90 kg
Type: single beam stairs (modular)
Type of application: modular stairs, universal installation and use, straight, left-hand, right-hand
Type of rooms: for small, medium and large rooms
Type of construction: modular wood/metal 140
Configuration, layouts: possible use of stairs according to own concept
Balustrade type: post filling (metal) 25 mm
Producer: Polish manufacturer of modular stairs, metal systems

Technical description
Storey height: from 216 to 276 cm,
Number of pieces: 11 pieces steps / 12 levels (top step below top floor)
Step height: adjustable from 18.0 / 23.0 cm
Step size: 150/300 mm
Step thickness: 40 mm
Opening in the ceiling: minimum 1450 x 750 mm
Stair width:
- straight treatment: P - 650 mm,
- L-90 torsion treatment: 650 / 650 mm
Type of construction: modular wood/metal 140
Metal color: matt black structure (RAL 9005)

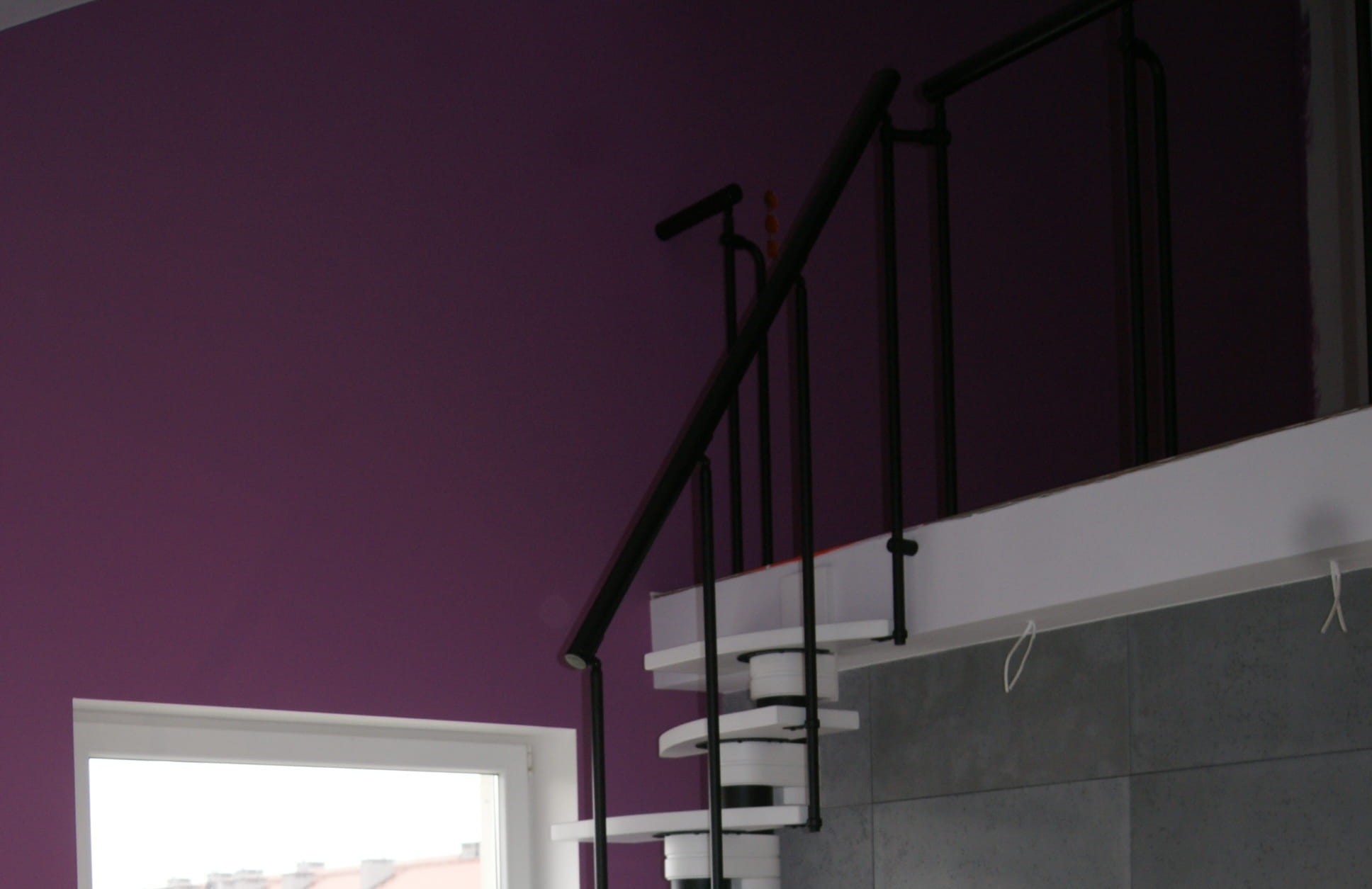

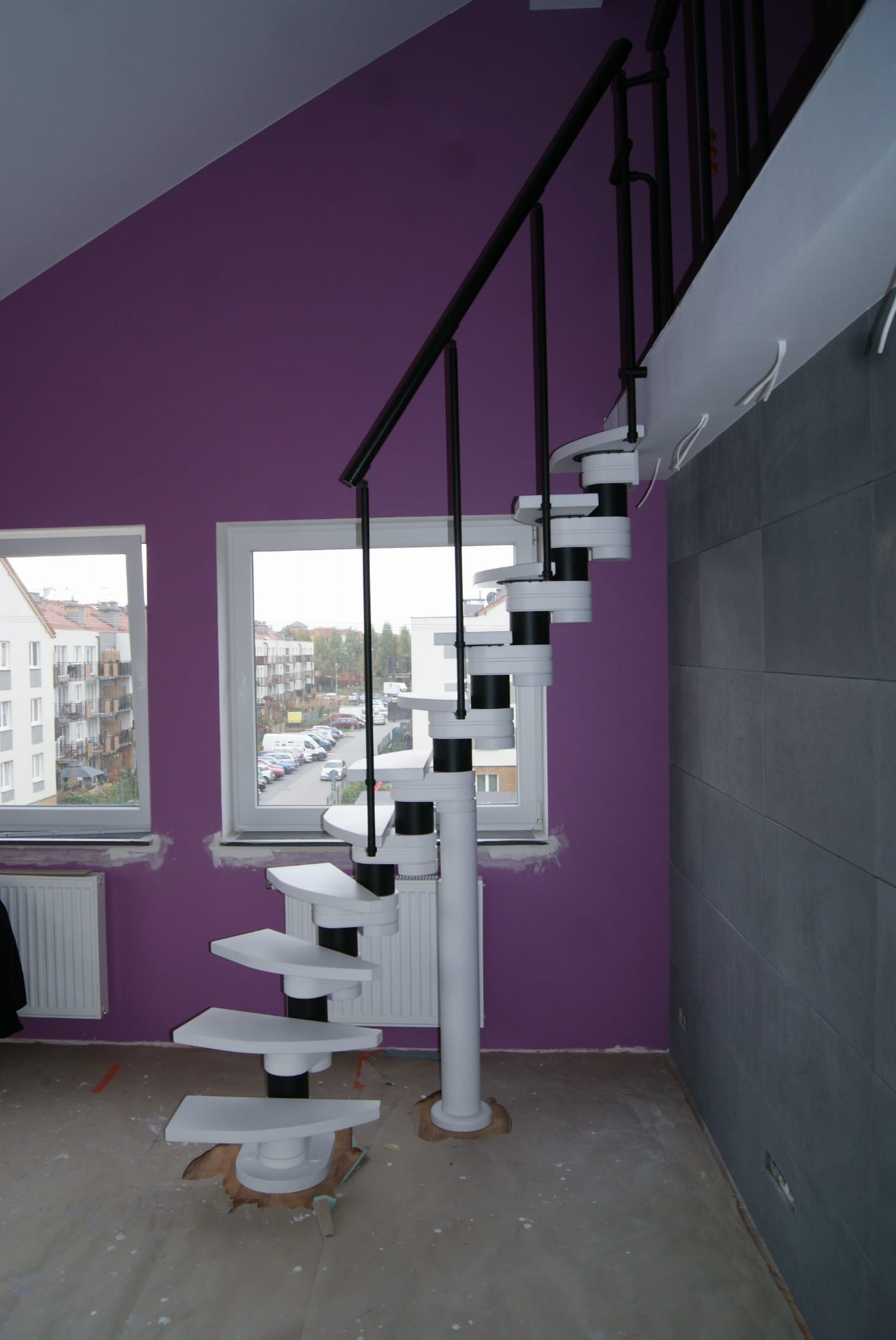

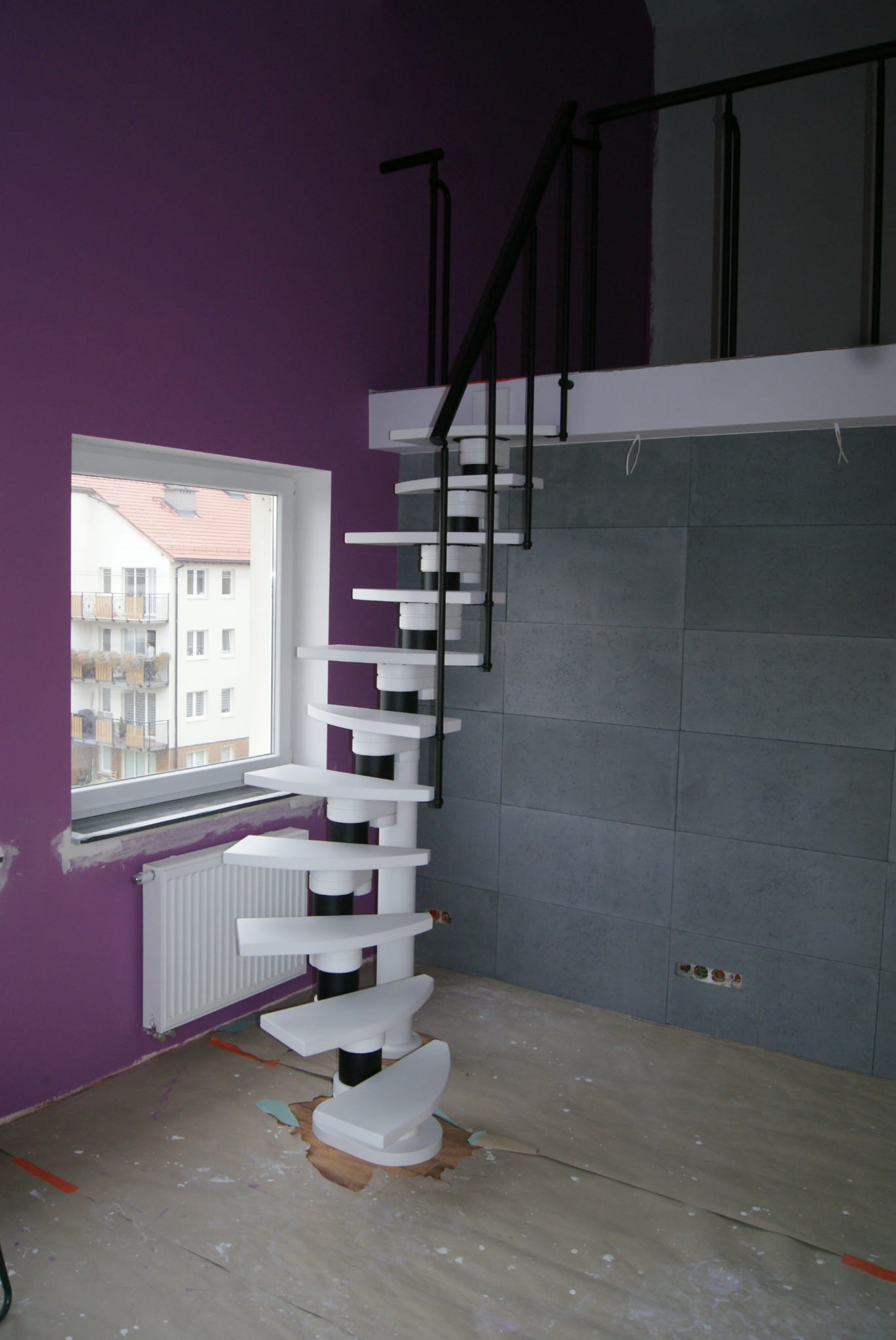

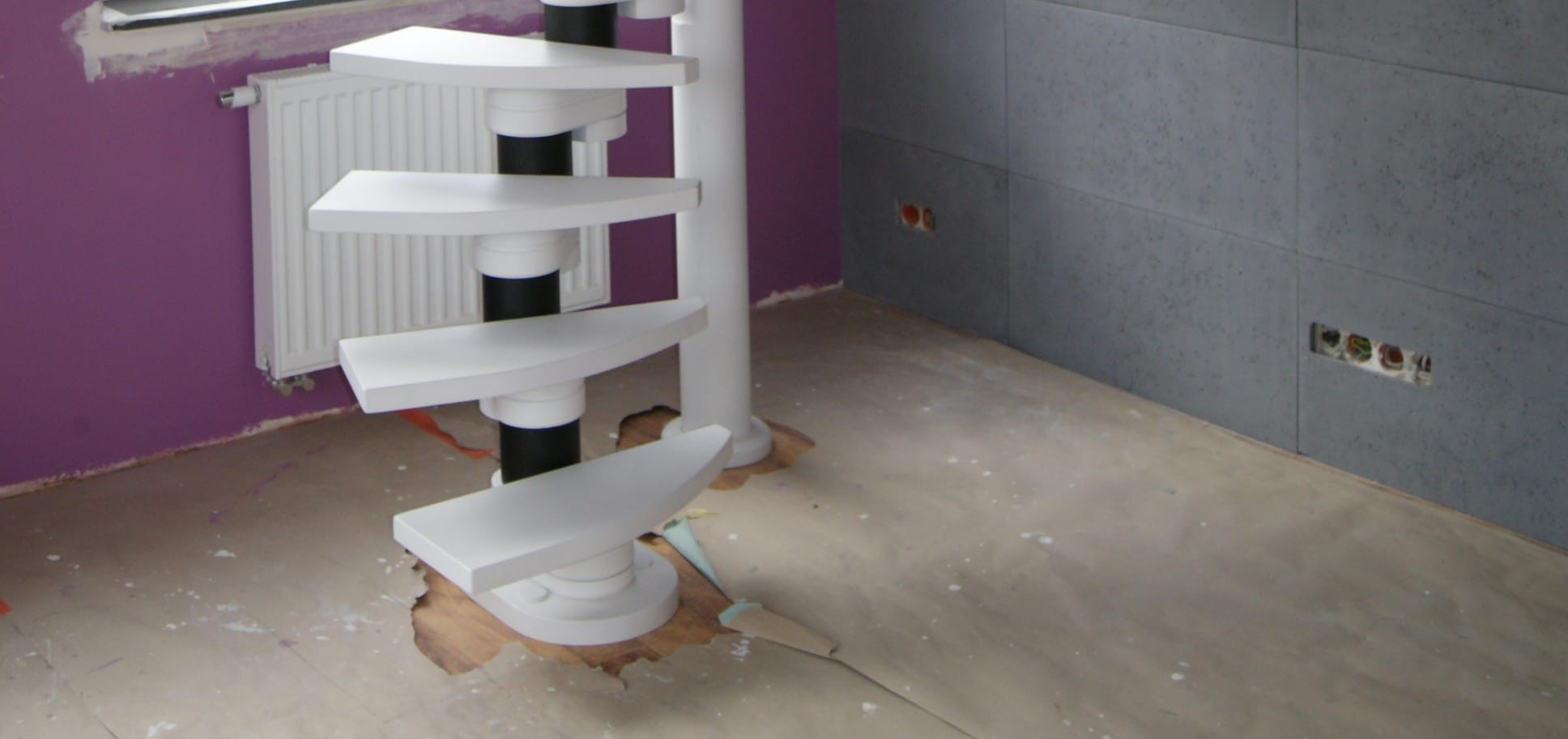

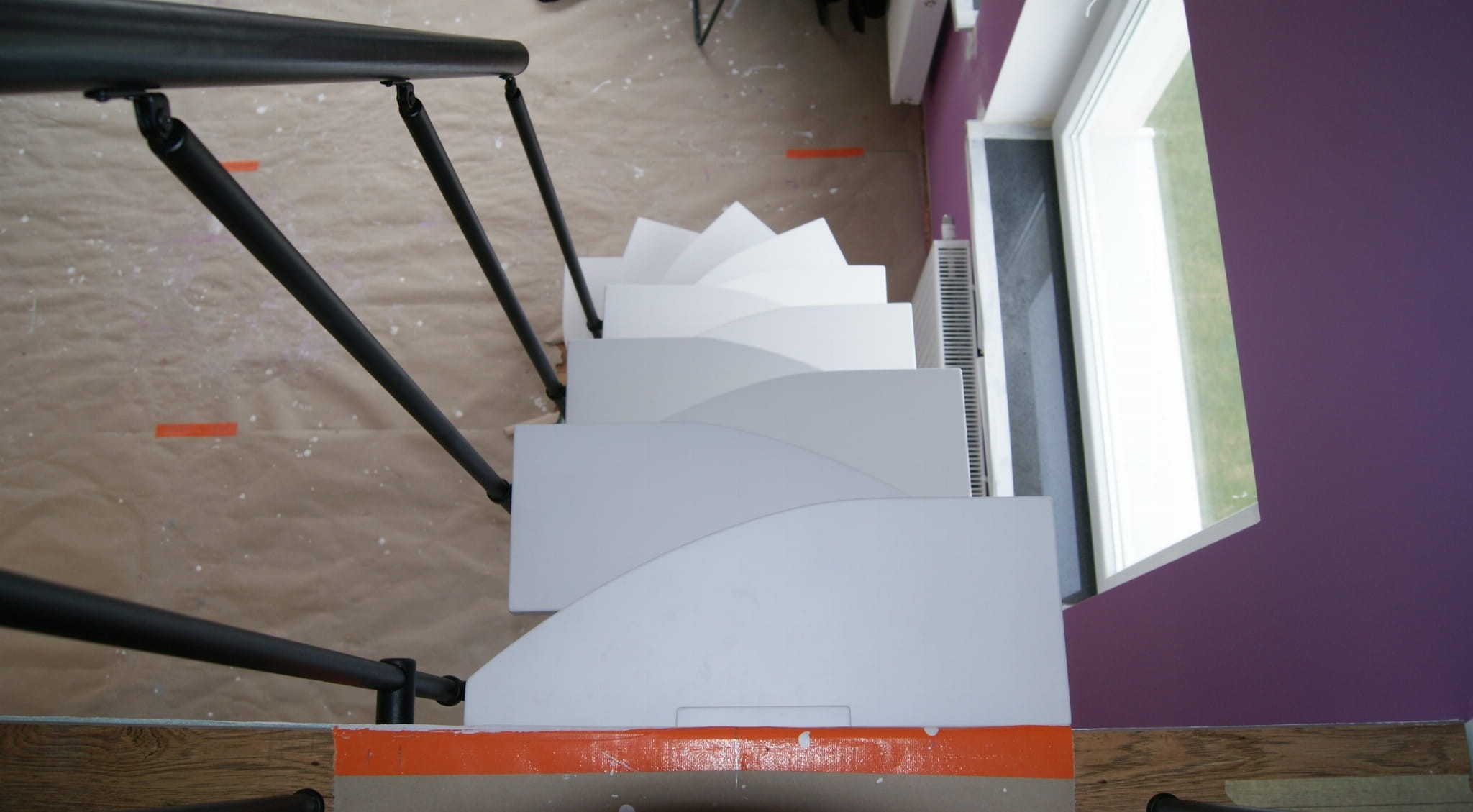

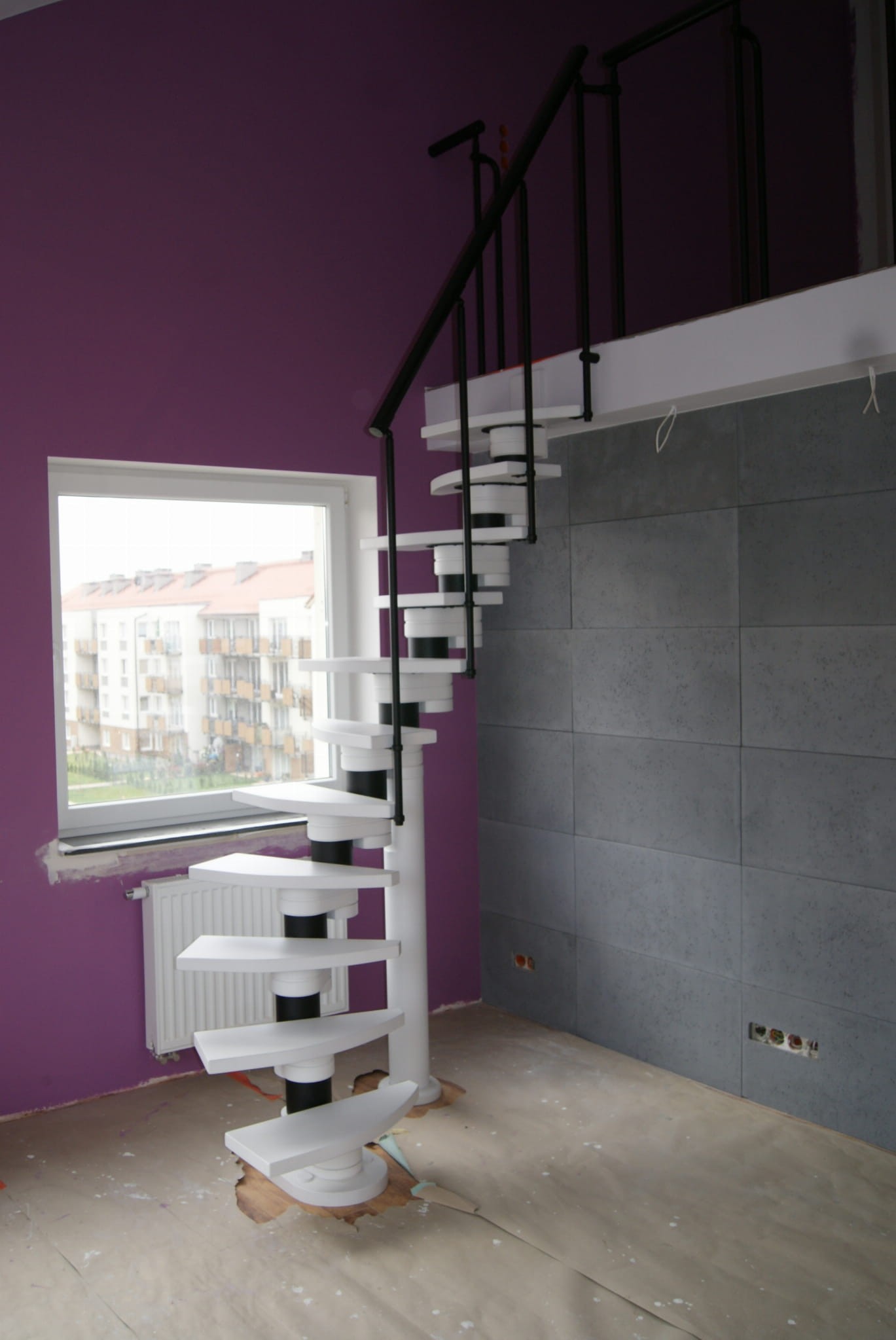

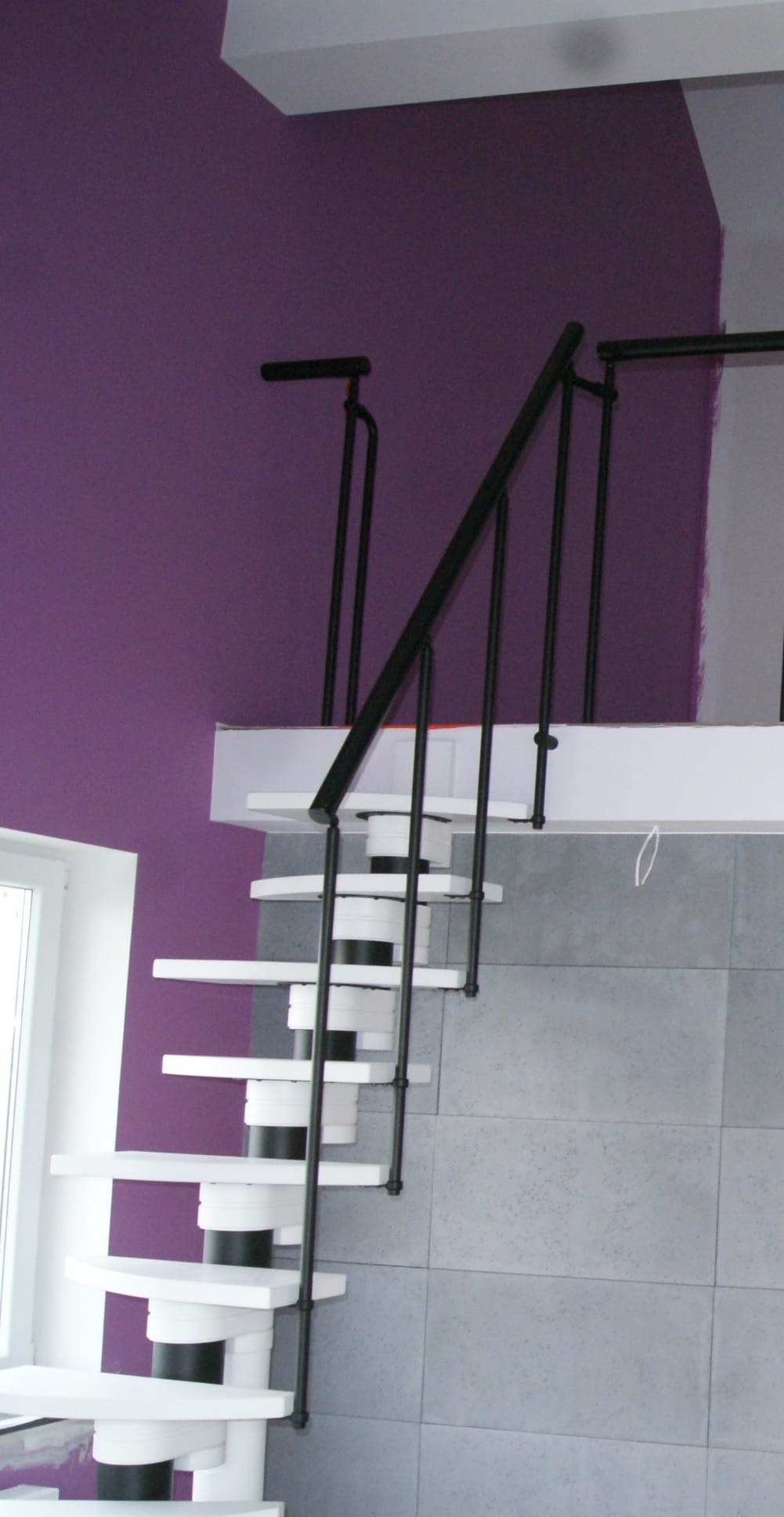

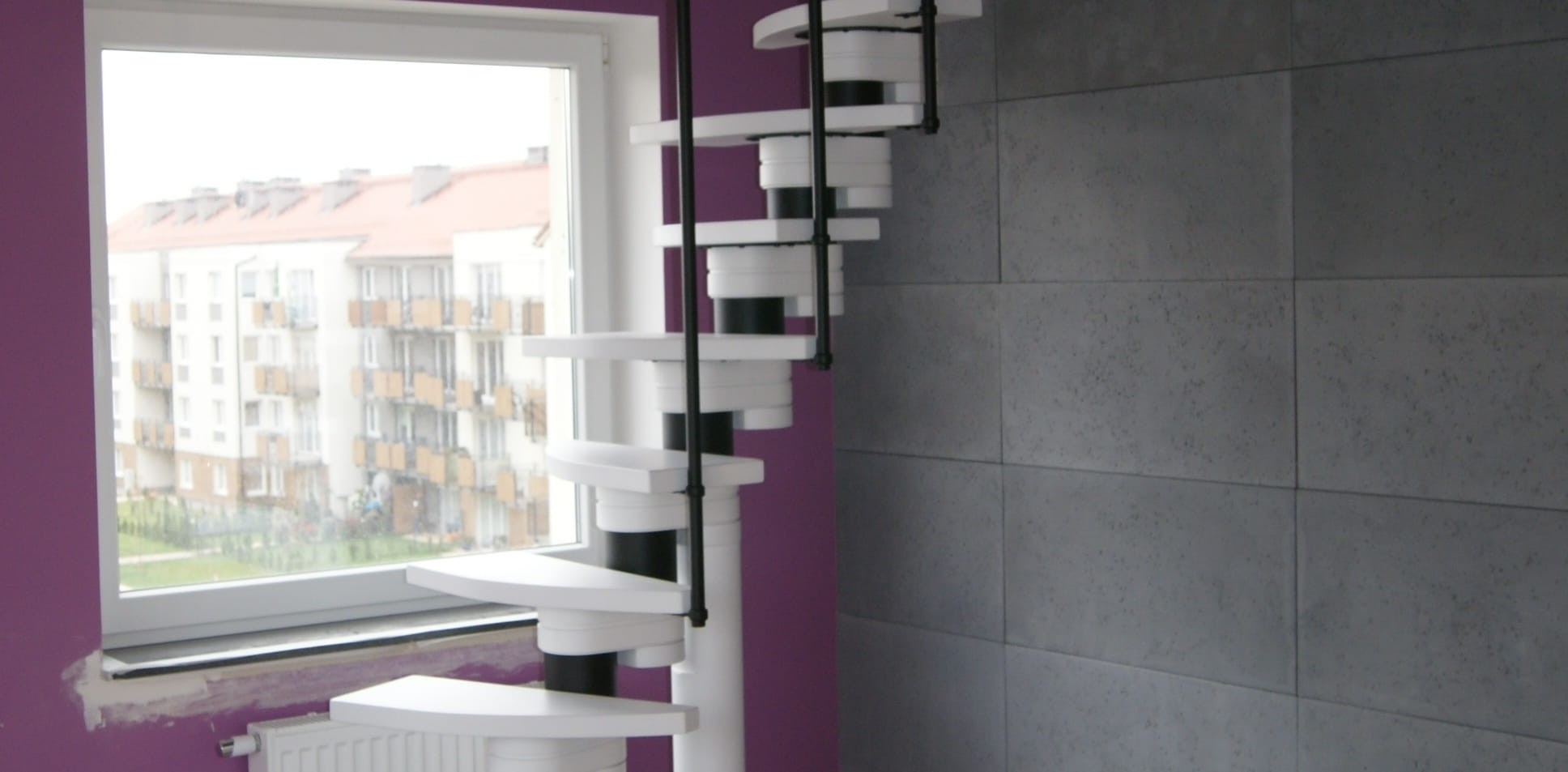

Wood finish (color): Illustrative photo (on beech / white RAL 9003 paint) or other colors from the wood color palette or matte paint acc. RAL,
One-sided balustrade: a typical set includes a one-sided balustrade from the first to the upper step
Balustrade description:
- posts (metal) 25 mm,
- attached to the side of the step with grommets,
- wooden handrail, diameter 50 mm

Example heights and sizes
Floor to floor 198 - 253 cm - 10 steps / 11 heights (- 1 step)
Floor to floor 216 - 276 cm - 11 steps / 12 heights (Standard)
Floor to floor 234 - 299 cm - 12 steps / 13 heights (+ 1 step)
Floor to floor 252 - 322 cm - 13 steps / 14 heights (+ 2 steps)
Floor to floor 270 - 345 cm - 14 steps / 15 heights (+ 3 steps)
Floor to floor 288 - 368 cm - 15 steps / 16 heights (+ 4 steps)

Additional information

Important information regarding the safety of use and use of stairs:
The stairs should partially run against the wall. They cannot be moved away from the wall by more than 5 cm. This is related to the safety of using the stairs. It is necessary to use a wall anchor. If the stairs are located as free-standing, it is advisable to use: - a support column, - a balustrade on both sides of the stairs,

Custom-made stairs to be agreed
If the stairs cannot be adjusted according to the diagrams below, we will make custom-made stairs.
We will design and estimate stairs based on:
- submitted building cross-section views with actual dimensions,
- making a sketch with actual dimensions,
- taking illustrative photos of the ground floor and first floor.
Sending information to e-mail: [email protected]
We will prepare a special offer in our online store, in the category: Made to order.

Time limit for completion:
- delivery without assembly 2 / 3 weeks,
- delivery with assembly 4 / 6 weeks,
