CORA metal stairs model Lima 02 11 elements

CORA metal stairs model Lima 02 L-90 11 elements

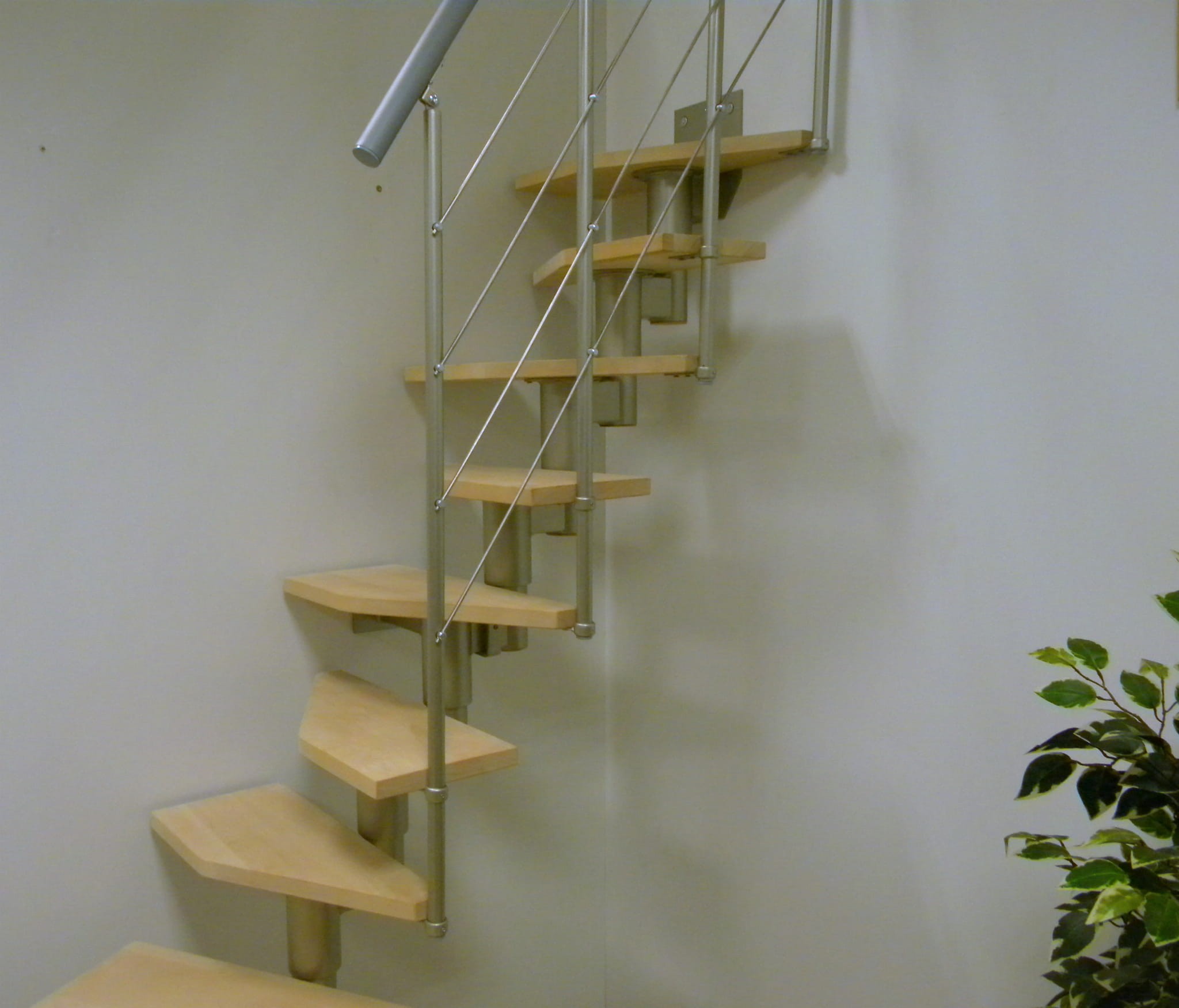

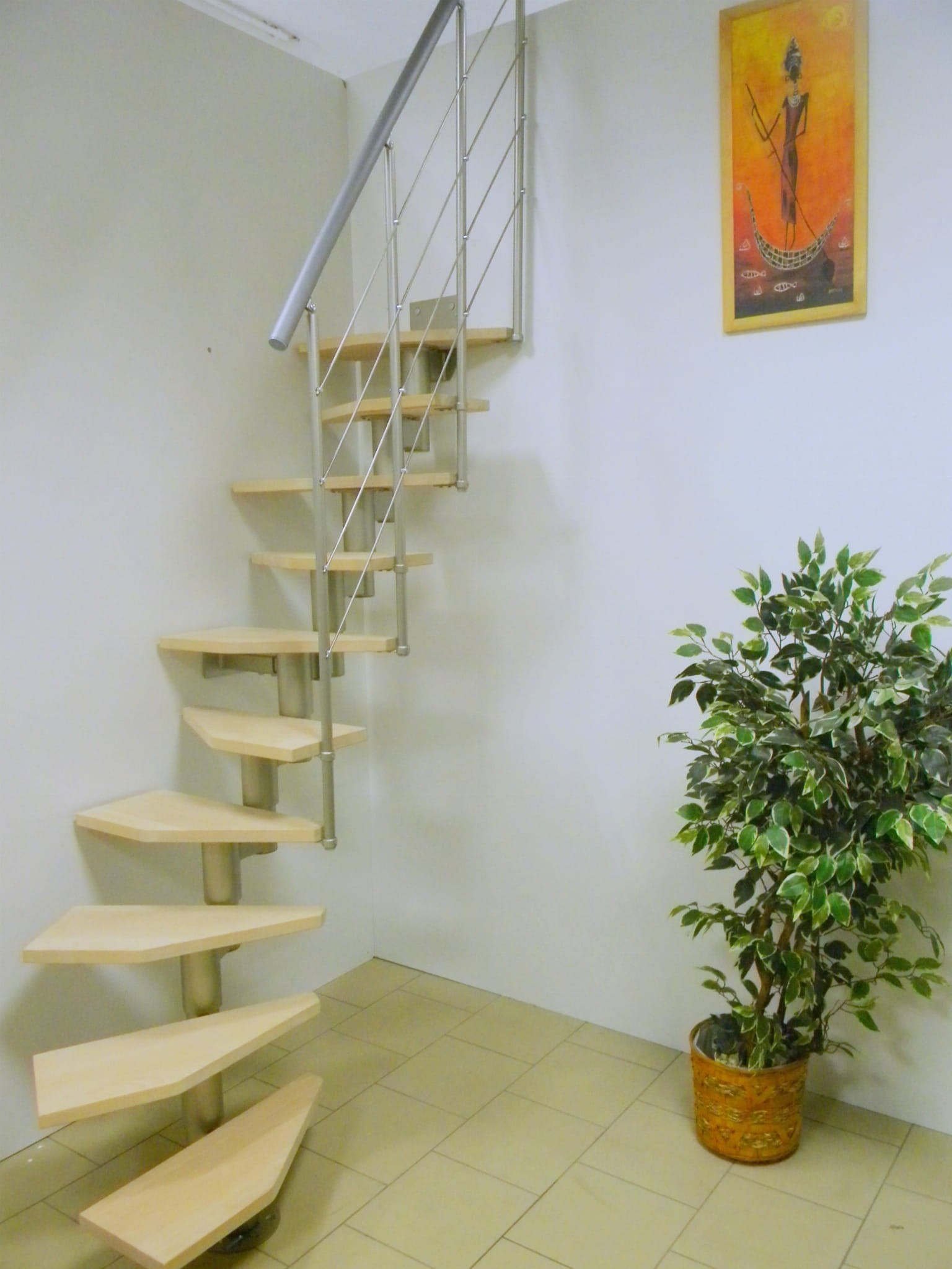

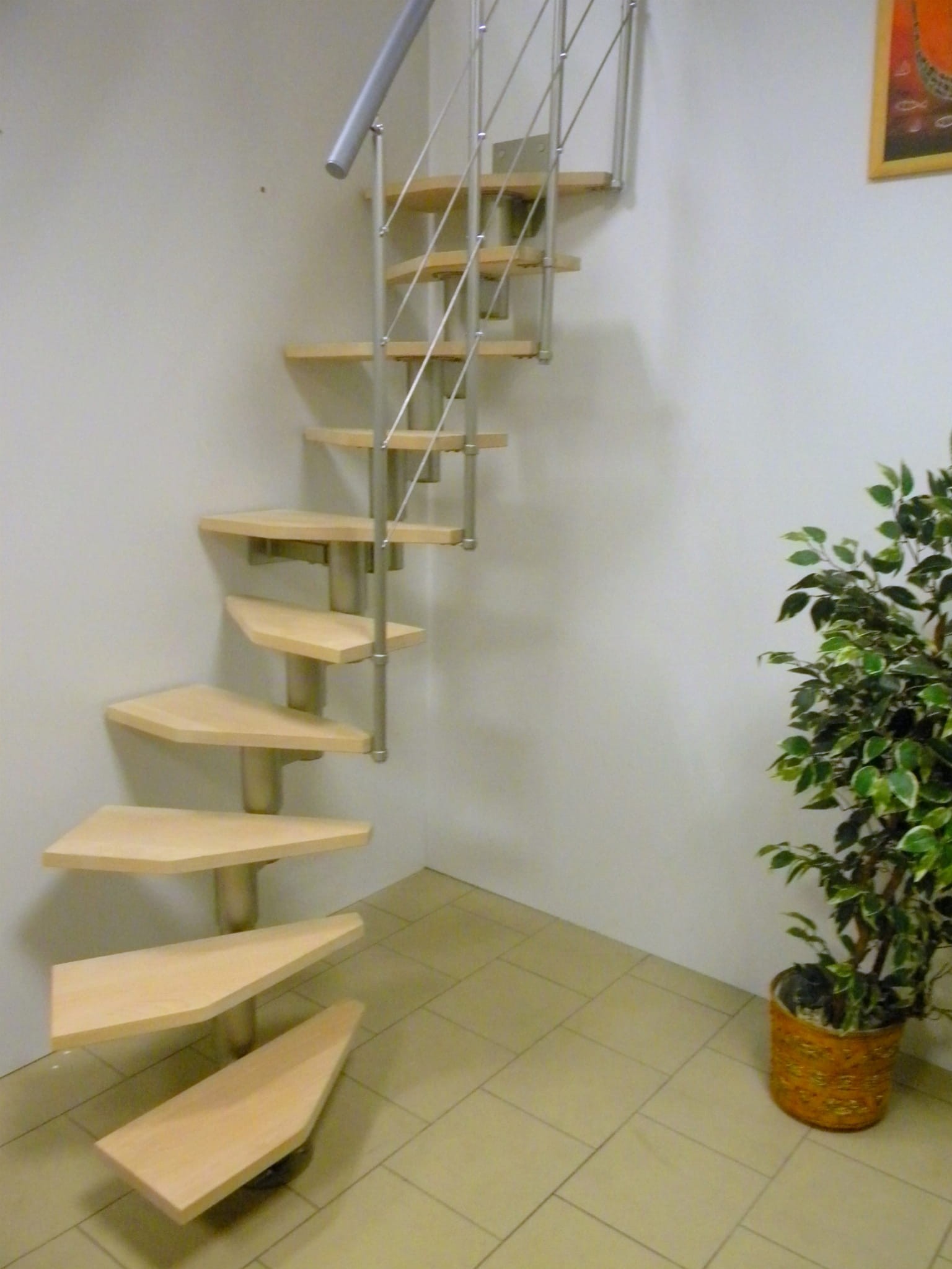

The Lima 02 model is a self-assembly staircase.

The set includes 11 stair elements, foldable to 12 levels. The elements are made primarily of solid wood (color to choose from the color palette provided by the manufacturer) and powder-coated steel in satin steel. After ordering the service, the manufacturer performs professional installation within the country for an additional fee.

Lima 02 stairs can be installed depending on the client's concept. The staircase is in its original form, swivel L-90, left or right, as well as an unusual, straight staircase - in this case, an appropriate note should be added to the form.

Description: parameters, application
Application: internal stairs (inside the building)
Load capacity: maximum load per step 120 kg
Weight: Set of stairs / set of 11 elements 90 kg
Type: single beam stairs (modular)
Type of application: modular stairs, universal installation and use, straight, left-hand, right-hand
Type of rooms: for small, medium and large rooms
Construction type: modular metal 120
Configuration, layouts: possible use of stairs according to own concept
Balustrade type: filling, polished stainless steel rods (4 pcs.),
Producer: Polish manufacturer of modular metal stairs, CORA system

Technical description
Storey height: from 216 to 276 cm,
Number of pieces: 11 pieces steps / 12 levels (top step below top floor)
The length of the stairs from the beginning of the lower step to the upper attachment to the ceiling is 144 cm
Step height: adjustable from 18.0 / 23.0 cm
Step size: 50/250mm (bevel)
Step thickness: 30 mm
Opening in the ceiling: minimum 1350 x 720 mm
Stair width:
- straight treatment: P - 600 mm,
- L-90 torsion treatment: 600 / 600 mm
Construction type: modular metal 120
Metal color: satin steel

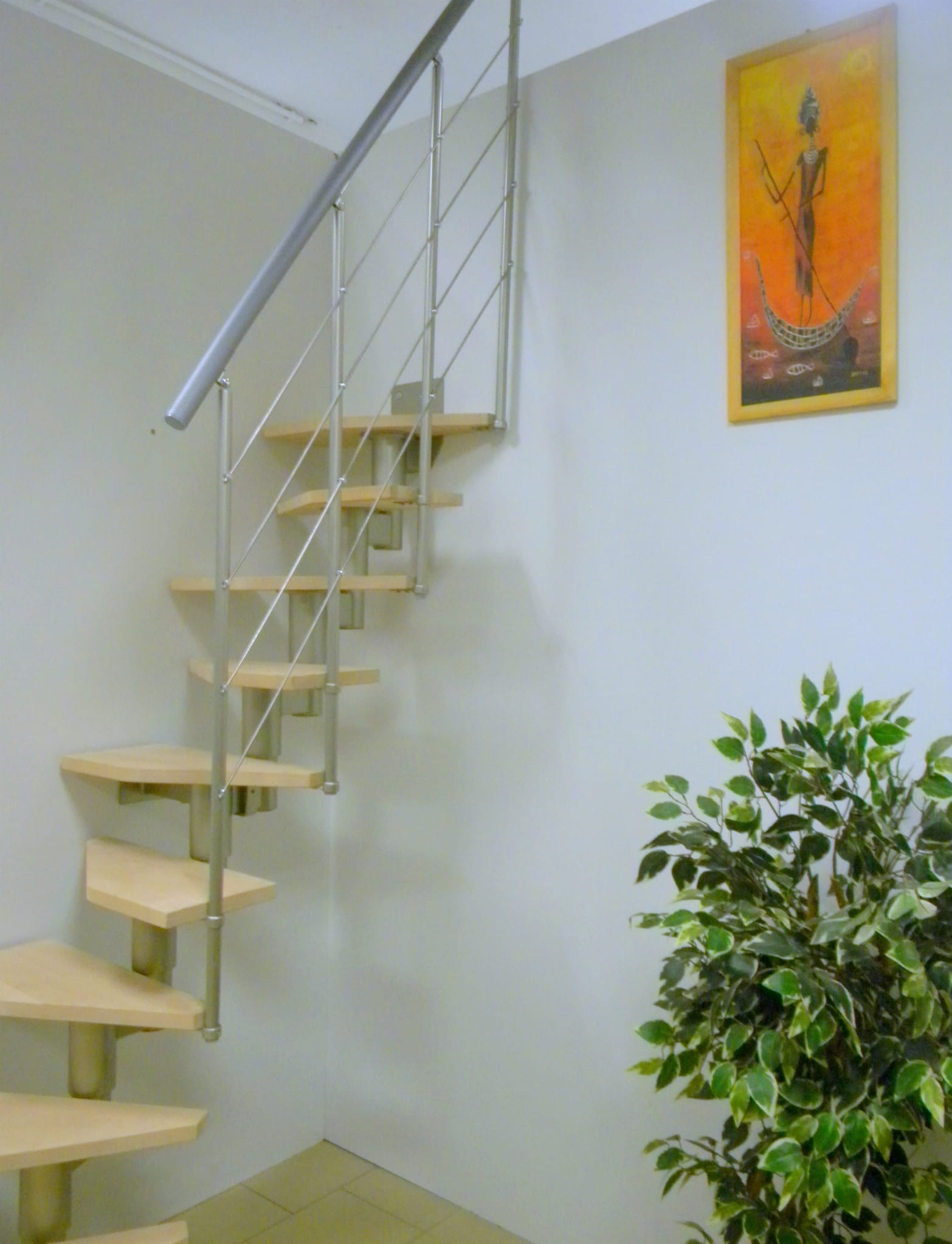

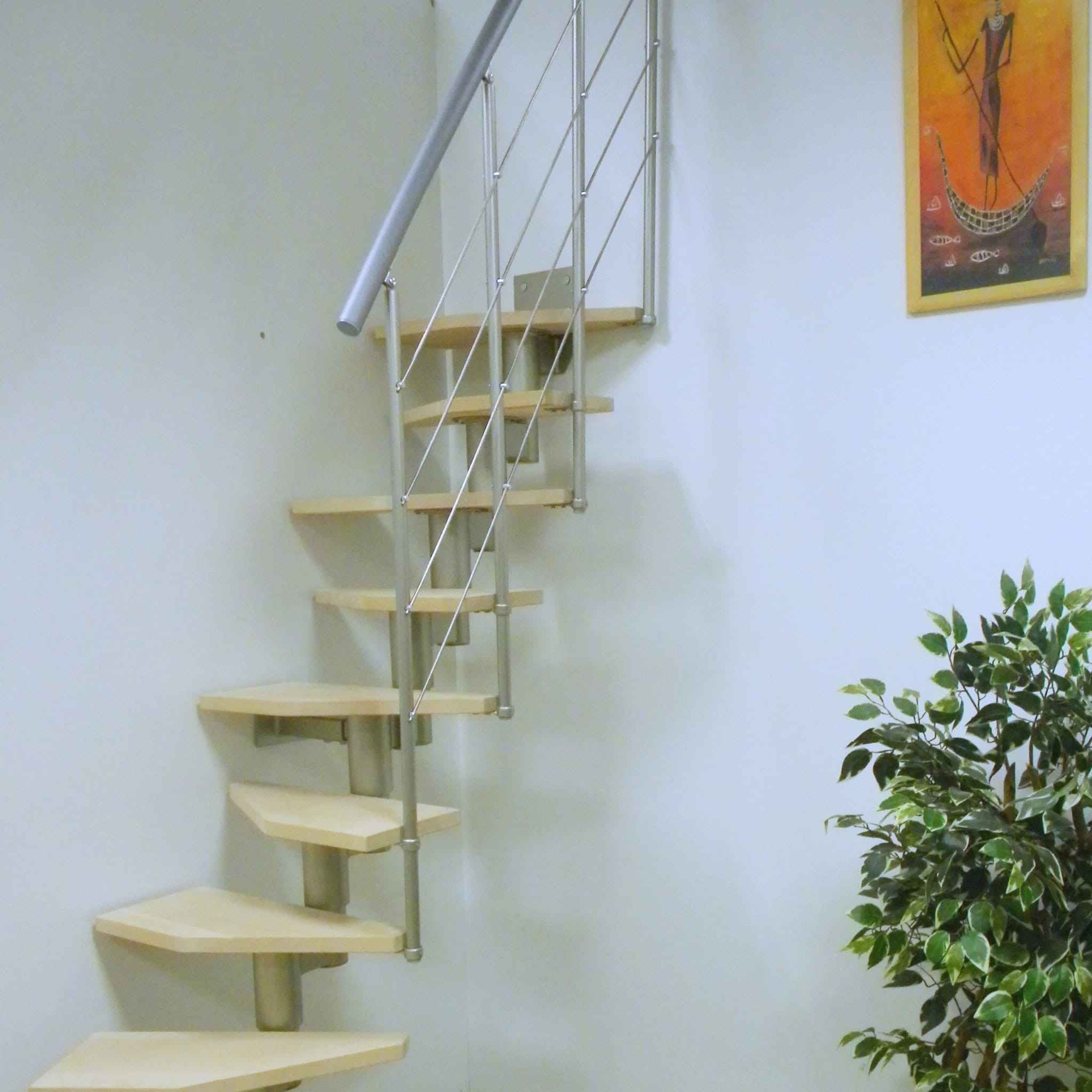

Wood finish (color): Illustrative photo (on beech / natural raw unvarnished) or other colors from the wood color palette or matte paint acc. RAL,
One-sided balustrade: a typical set includes a one-sided balustrade from the first to the upper step
Balustrade description:
- posts (metal) 25 mm,
- filling: polished stainless steel rods (4 pcs.),
- attached to the side of the step with grommets,
- material handrail / silver, gray color

Example heights and sizes
Floor to floor 198 - 253 cm - 10 steps / 11 heights (- 1 step)
Floor to floor 216 - 276 cm - 11 steps / 12 heights (Standard)
Floor to floor 234 - 299 cm - 12 steps / 13 heights (+ 1 step)
Floor to floor 252 - 322 cm - 13 steps / 14 heights (+ 2 steps)
Floor to floor 270 - 345 cm - 14 steps / 15 heights (+ 3 steps)
Floor to floor 288 - 368 cm - 15 steps / 16 heights (+ 4 steps)

Additional information

Important information regarding the safety of use and use of stairs:
The stairs should partially run against the wall. They cannot be moved away from the wall by more than 5 cm. This is related to the safety of using the stairs. It is necessary to use a wall anchor. If the stairs are located as free-standing, it is recommended to use: - a support column, - a balustrade on both sides of the stairs,

Custom-made stairs to be agreed

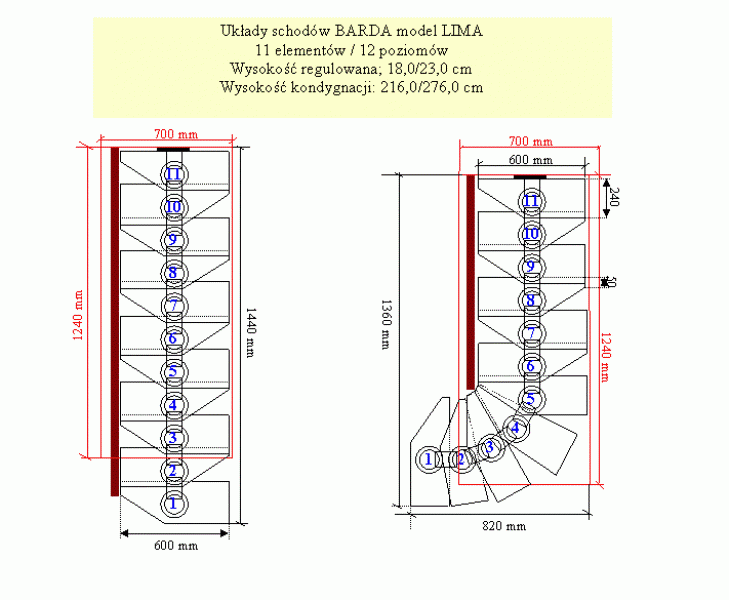

If the stairs cannot be adjusted according to the diagrams below, we will make custom-made stairs.
We will design and estimate stairs based on:
- submitted building cross-section views with actual dimensions,
- making a sketch with actual dimensions,
- taking illustrative photos of the ground floor and first floor.
Sending information to e-mail: [email protected]
We will prepare a special offer in our online store, in the category: Made to order.

Time limit for completion:
- delivery without assembly 2 / 3 weeks,
- delivery with assembly 4 / 6 weeks,
