Metal stairs Mix Metal L-90 12 elements - ASK FOR PRICE!

Stairs made to individual order - ASK FOR PRICE!

CORA metal stairs, model Mix Metal 180 L-90, 12 elements

The Mix Metal model is a self-assembly staircase.

The set includes 12 stairs elements, foldable to 13 levels. The elements are made primarily of solid wood (color to choose from the color palette provided by the manufacturer) and powder-coated steel in matt black structure (RAL 9005). After ordering the service, the manufacturer performs professional installation within the country for an additional fee.

Metal stairs as a modern application in construction replace traditional modular stairs

Cora stairs are 100% professionalism and satisfaction.

Mix Metal stairs can be installed in one of 22 configurations, all of which are presented by the manufacturer. This model has the original L-90 treatment, both right and left. It is possible to order a simple treatment after adding an annotation to the order form.

ATTENTION!

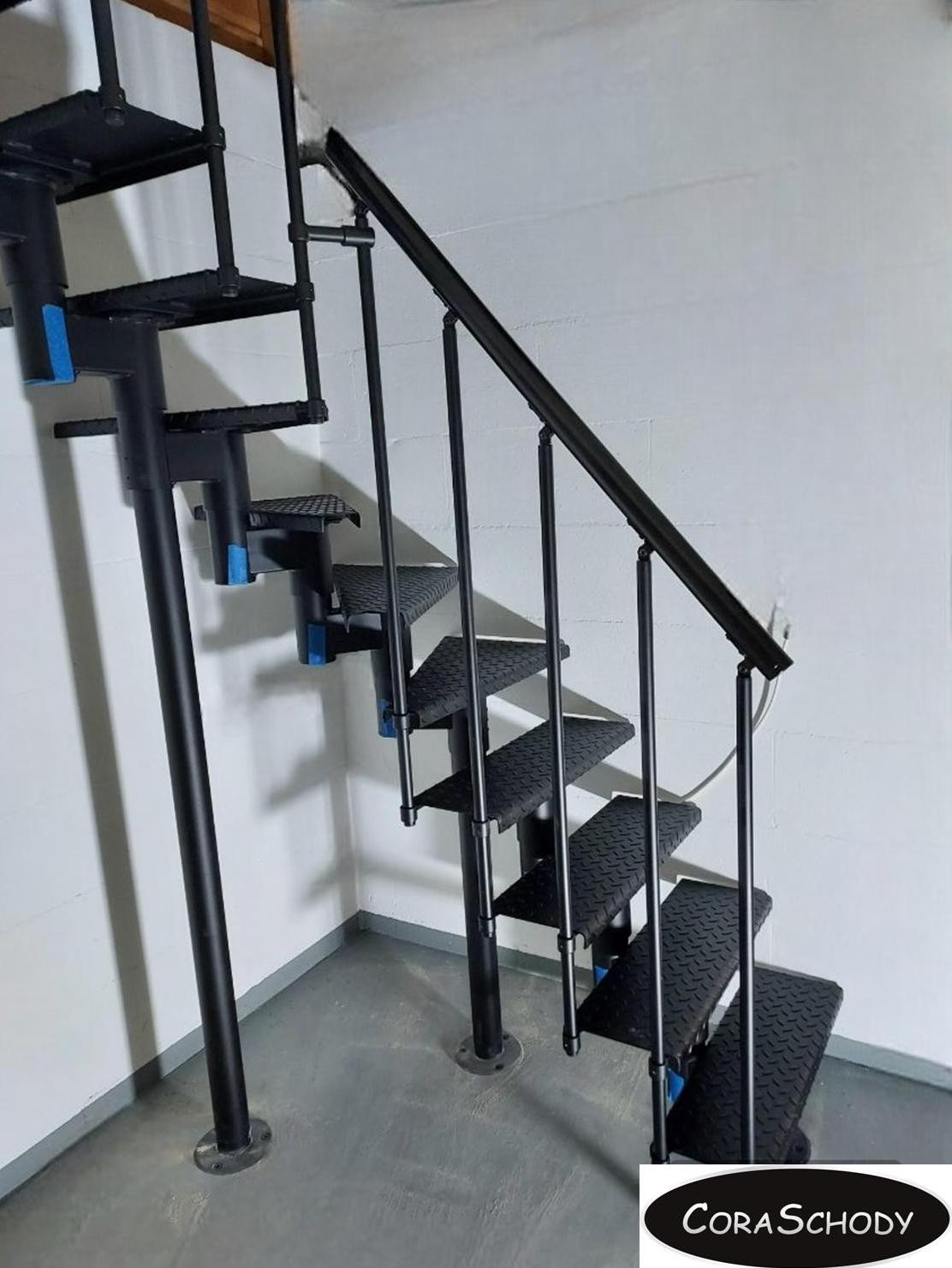

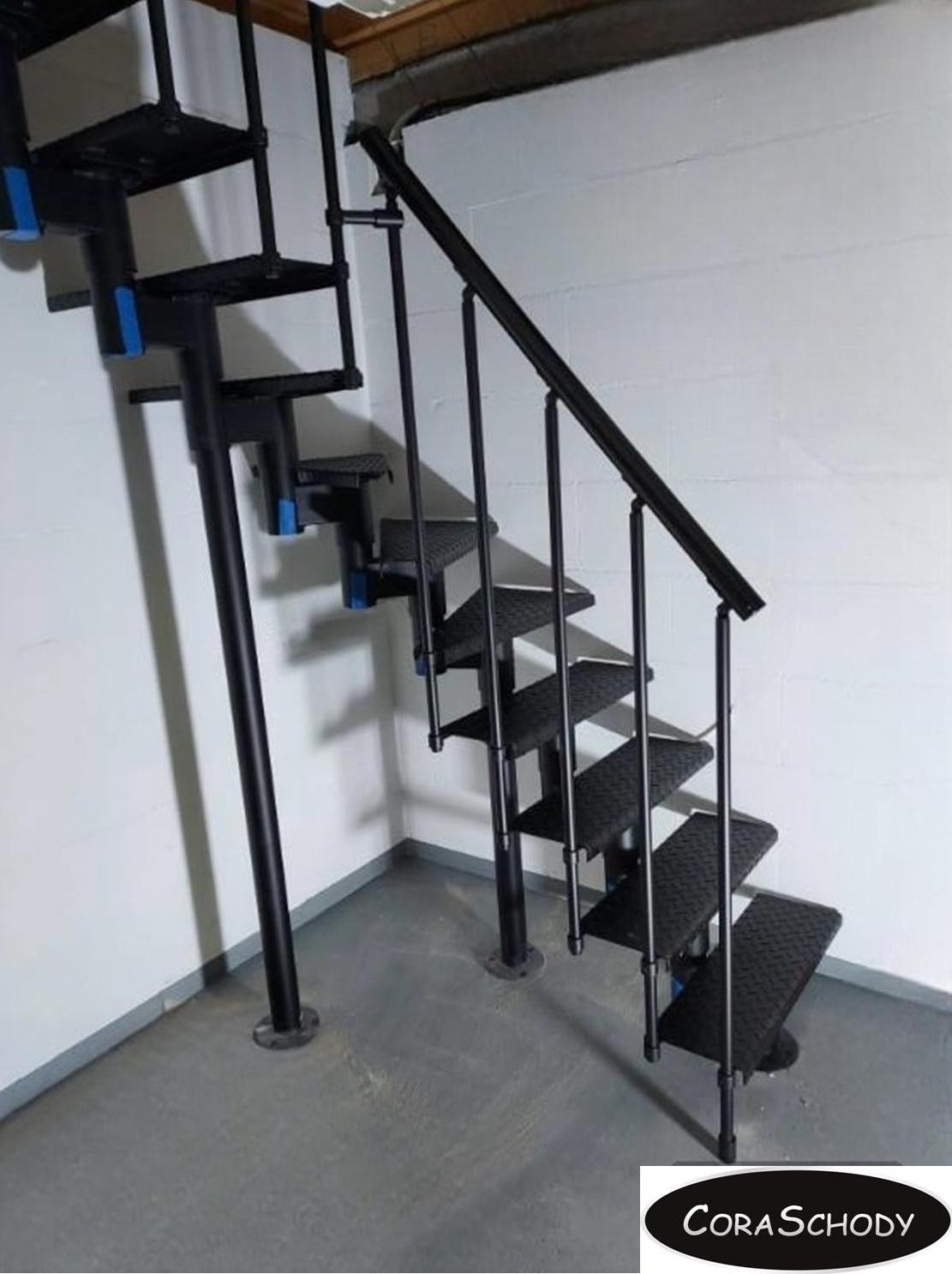

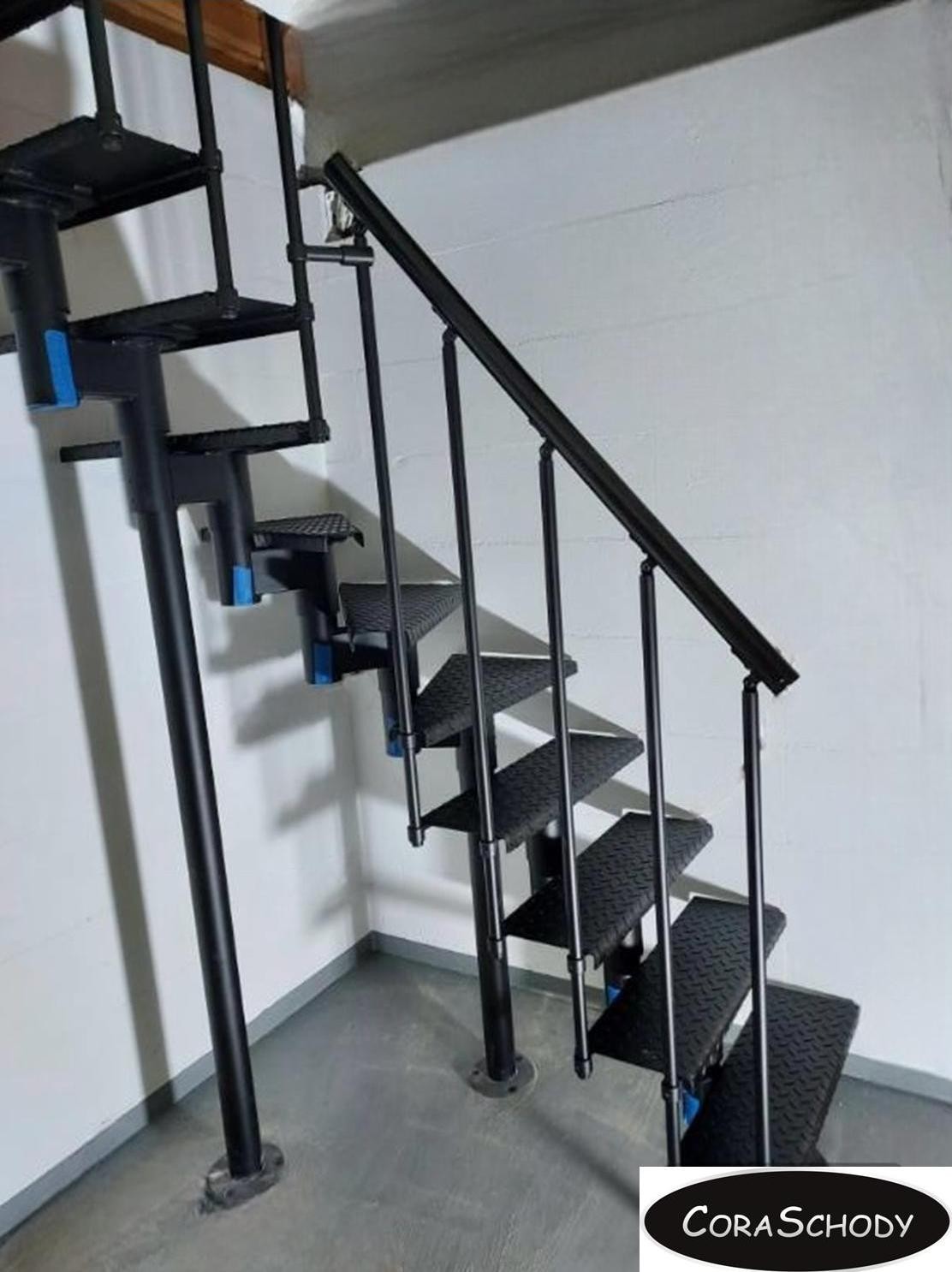

The standard set of stairs does not include support columns and external balustrades as in the photos shown.
Typical anchoring of stairs is only to walls.

Description, parameters, application
Application: internal stairs (inside the building)
Load capacity: maximum load per step 200 kg
Weight: set of stairs / set of 12 elements 180 kg
Type: single beam stairs (modular)
Type of application: modular stairs, universal installation and use, straight, left-hand, right-hand
Type of rooms: for small, medium and large rooms
Construction type: modular metal 180
Finishing of steps: illustrative photo - corrugated sheet metal
Configuration, layouts: possible use of L-90, P stairs in 22 layouts
Balustrade type: vertical baluster filling 25 mm
Producer: Polish manufacturer of modular metal stairs, CORA system

Example heights and sizes
Floor to floor 193 - 253 cm - 10 steps / 11 heights (- 2 steps)
Floor to floor 210 - 276 cm - 11 steps / 12 heights (- 1 step)
Floor to floor 228 - 299 cm - 12 steps / 13 heights (standard)
Floor to floor 245 - 322 cm - 13 steps / 14 heights (+ 1 step)
Floor to floor 263 - 345 cm - 14 steps / 15 height (+ 2 steps)
Floor to floor 280 - 368 cm - 15 degrees / 16 heights (+ 3 degrees)

Technical description
height: 228 / 299 cm,
number of elements: 12 pieces / 13 heights,
step height: adjustable 17.5 / 23.0 cm,
straight step size: 240 (180+60) mm
step thickness: 40 mm



opening in the ceiling: minimum 800 x 2130 mm,

Metal color: matt black structure (9005)
run width:
- straight treatment P: 700 mm
- L-90 treatment: 700 / 700 mm
type of wood: solid beech,
wood color: illustrative photo, checkered sheet / matt black structure (RAL 9005)
Modular construction: 180 metal
One-sided balustrade
- Vertical balusters (metal) 25 mm,
- attached to the side of the step
- 2 pieces per step,
- wooden handrail 50 mm,

Important information regarding the safety of use and use of stairs:
The stairs should partially run against the wall. They cannot be moved away from the wall by more than 5 cm. This is related to the safety of using the stairs. It is necessary to use a wall anchor. If the stairs are located as free-standing, it is advisable to use: - a support column, - a balustrade on both sides of the stairs,

Custom-made stairs to be agreed:
If the stairs cannot be adjusted according to the configurations below, we will make custom-made stairs according to the diagrams.
We will design and estimate stairs based on:
- submitted building cross-section views with actual dimensions,
- or prepare a sketch with actual dimensions and send it to e-mail: [email protected]
We will prepare a special offer in our online store in the made-to-order category.

Time limit for completion
- Delivery of stairs without assembly – 2 / 3 weeks
- Delivery of stairs with assembly – 4 / 6 weeks
