Stairs modular CORA model Mix 09 U-180 14 elements

Availability: Dostępny
Dispatched within: 21 dni
Delivery: The price does not include any possible payment costs check the delivery methods
Price: $1,816.12 1816.12
quantity kpl.

product unavailable

add to wish list

Description

Stairs modular CORA model Mix 09 U-180 14 elements

Mix 09 stairs are stairs for self-assembly.

The set includes 14 elements of stairs, folded into 15 levels. The elements are made of solid wood (color to choose from the manufacturer's color palette) and powder coated steel in silver matt structure. After ordering the service for an additional fee, professional installation in the country is carried out by the manufacturer.

Modular stairs as a modern application in construction, replace traditional modern wooden stairs.

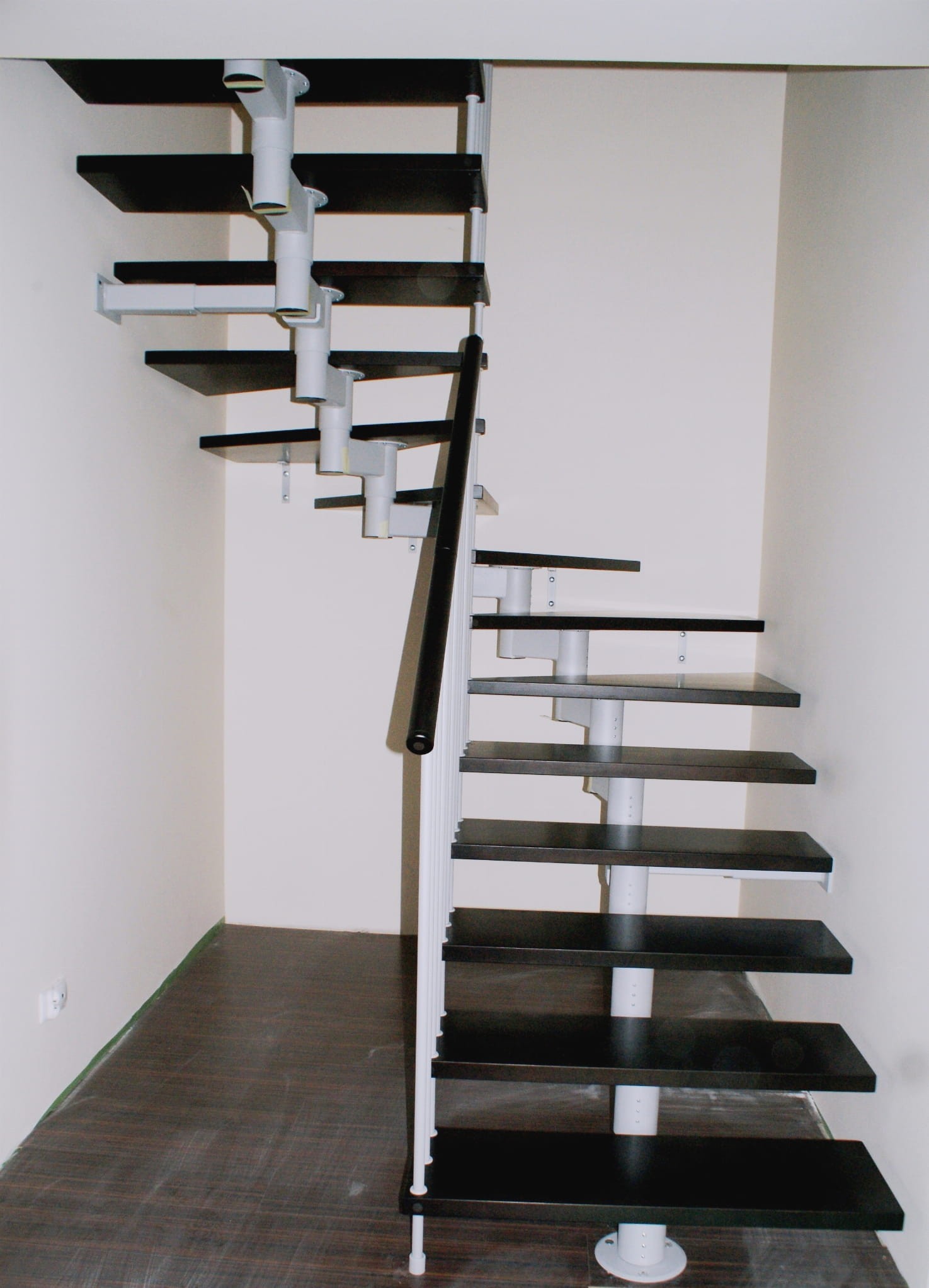

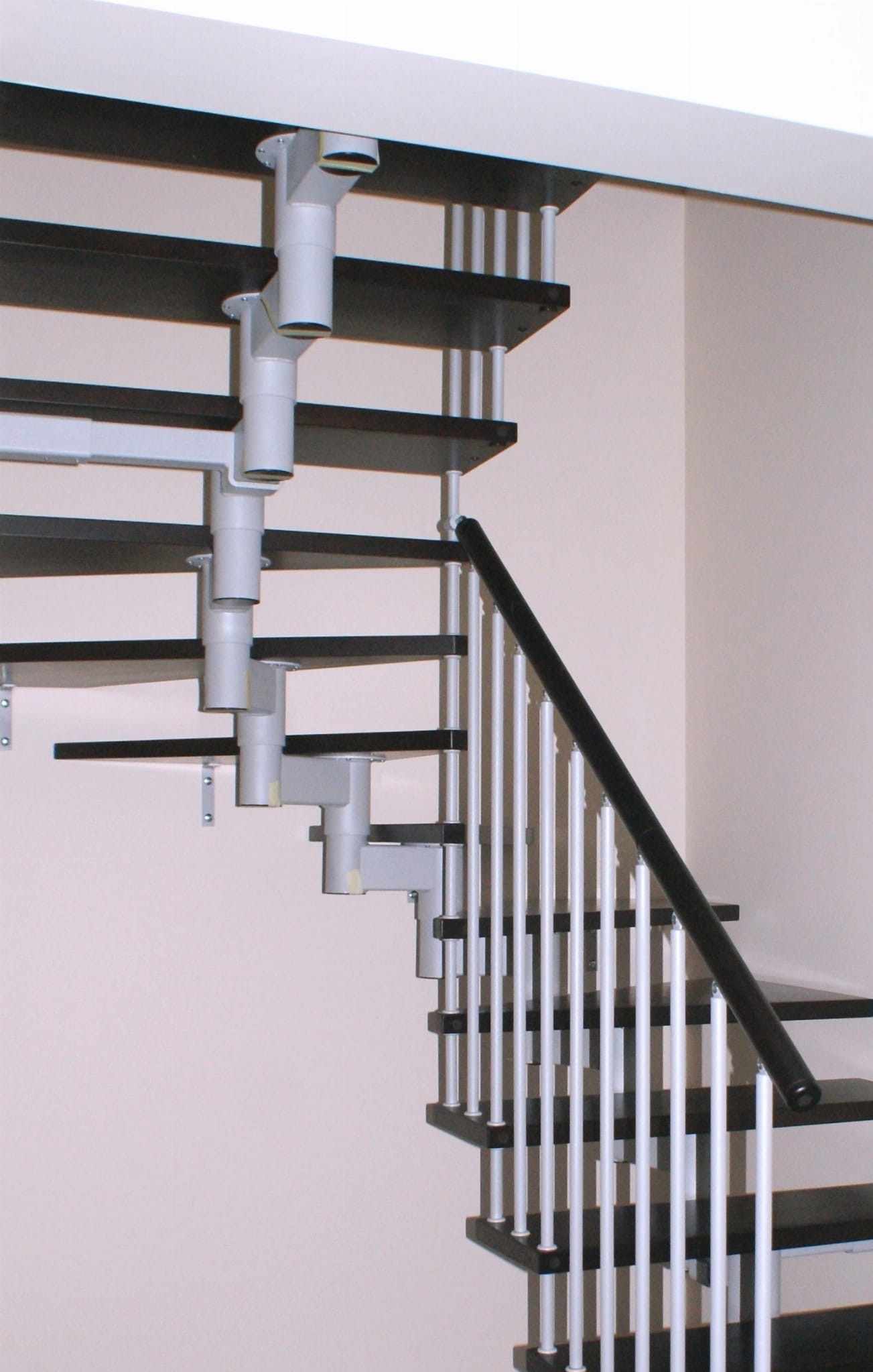

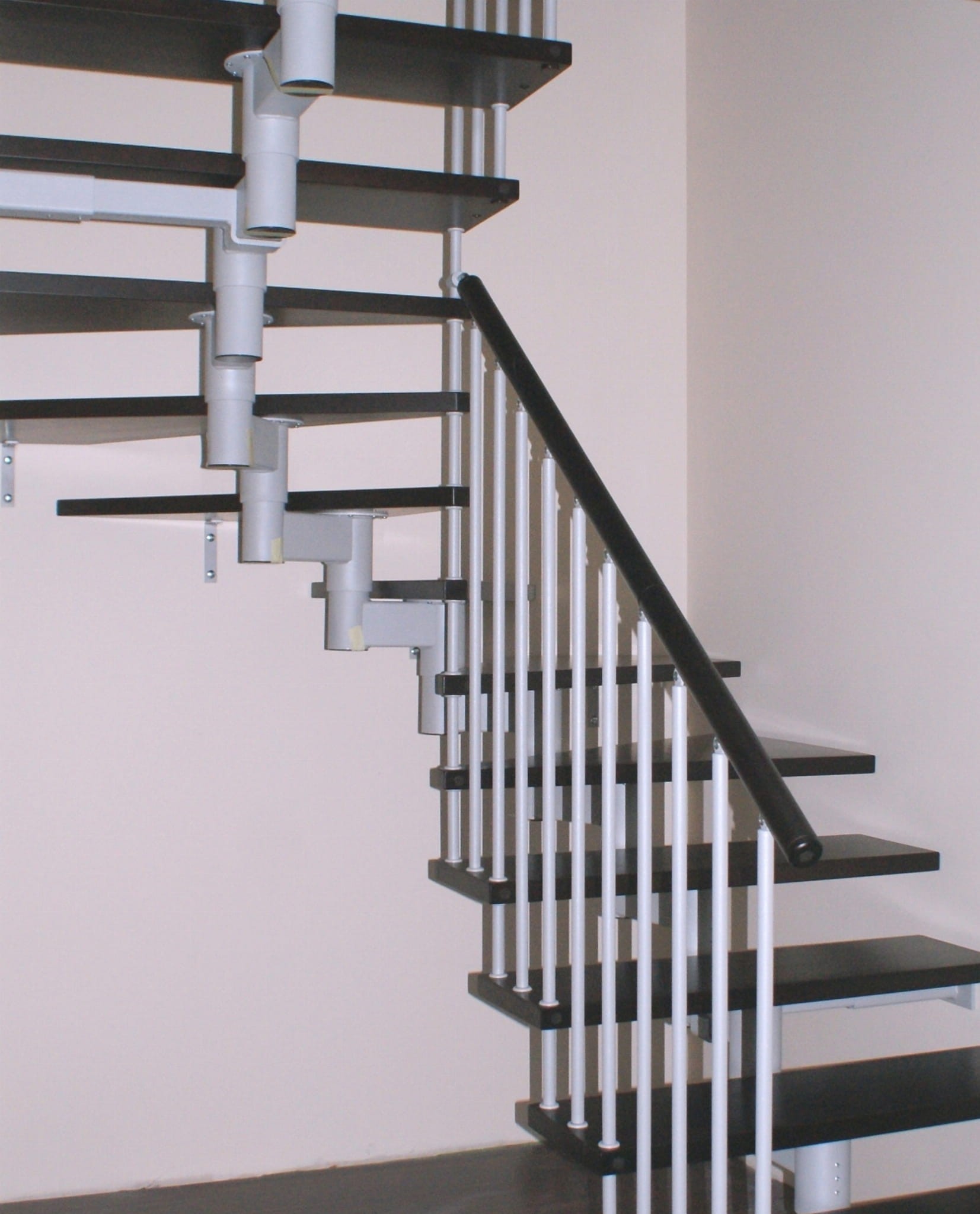

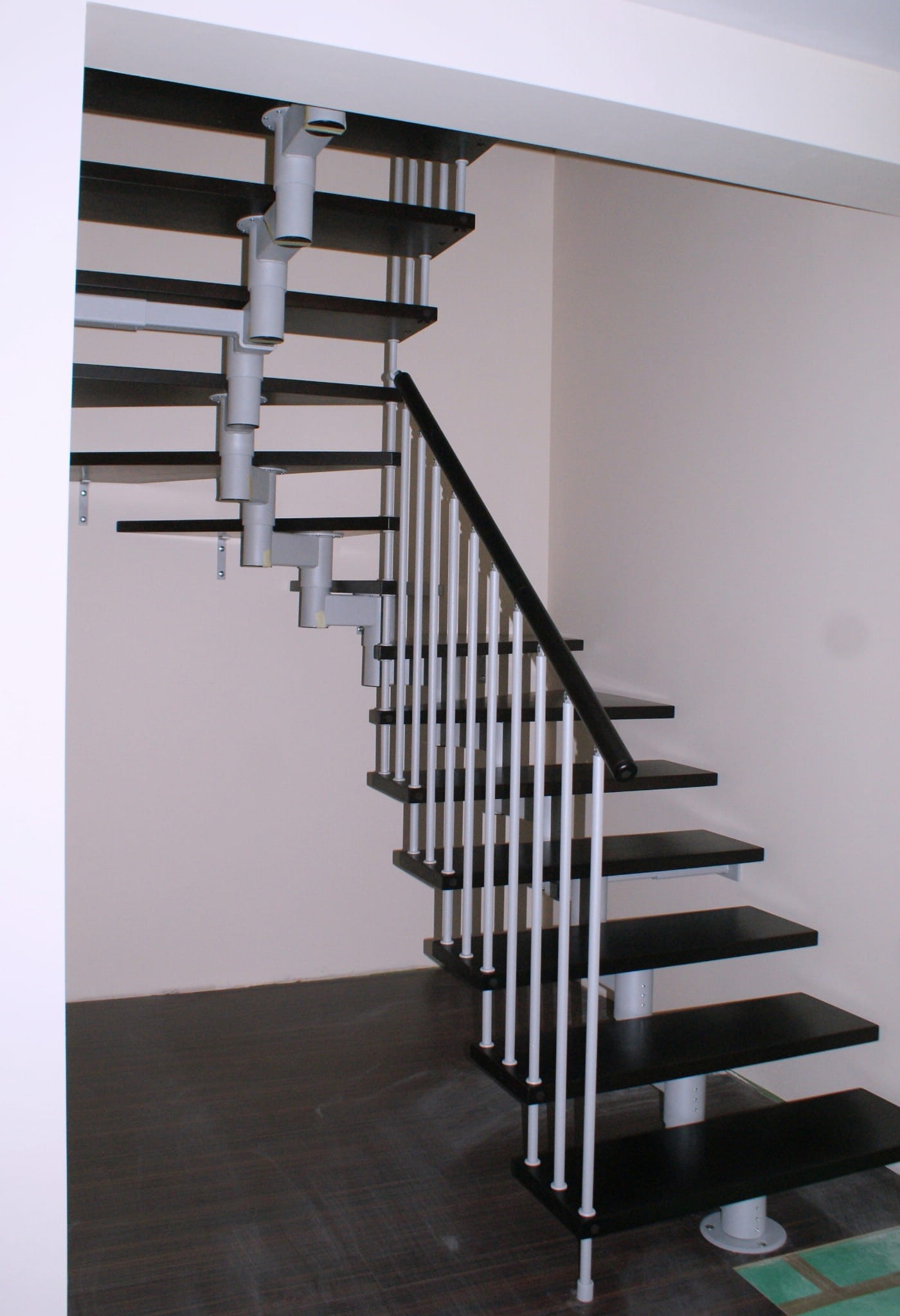

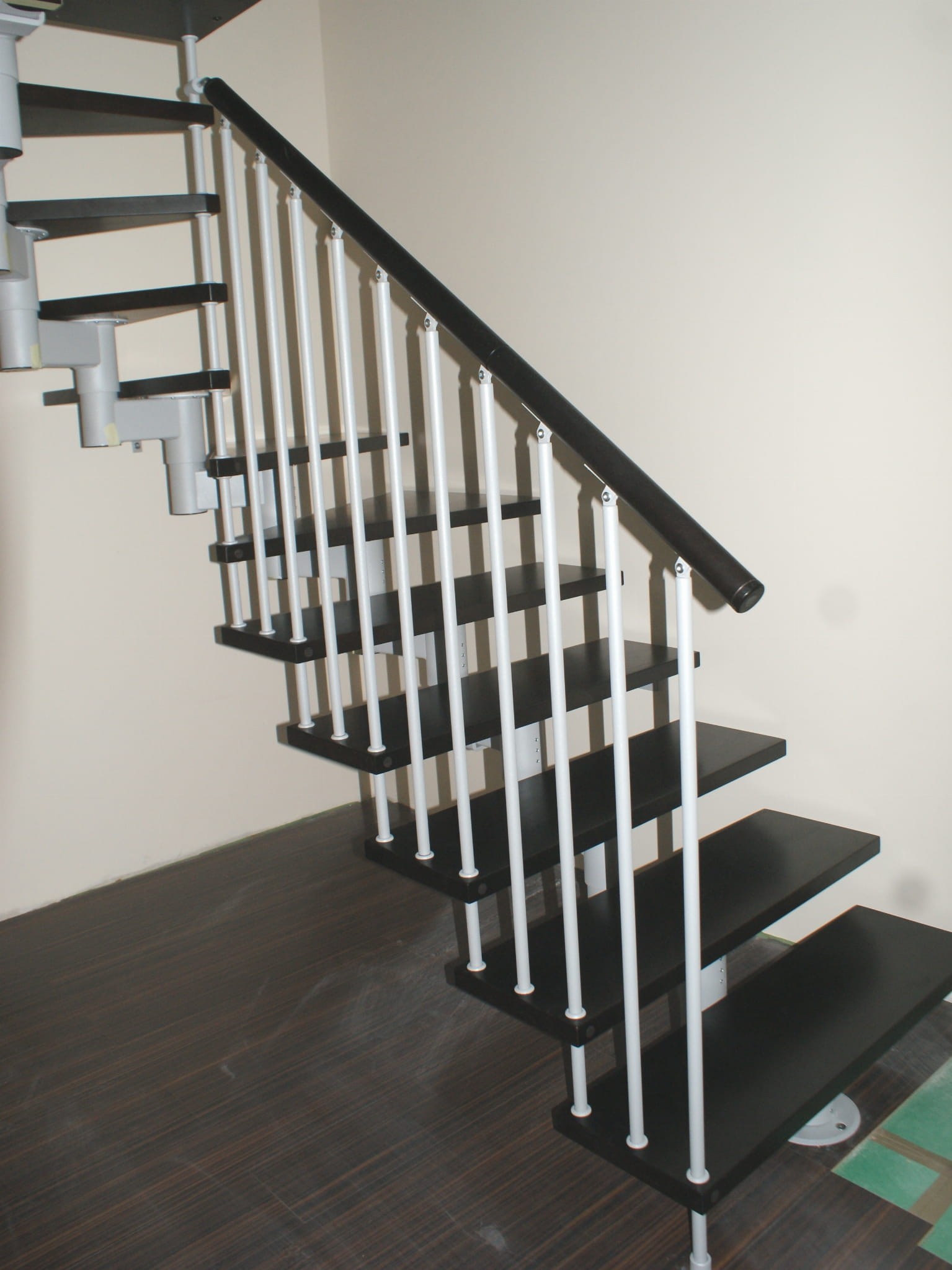

Mix 09 stairs can be mounted in one of 66 configurations, fully presented by the manufacturer. This model has an original U-180 treatment, both right and left. It is possible to order a simple treatment after adding an annotation to the order form.

It is recommended to install the stairs against the wall, up to 5 cm away from it, which allows the installation of anchors. If the wall does not withstand the anchoring, a support column must be used alternatively. For free-standing stairs, it is planned to use a support pole, as well as railings securing on both sides, additional options on request.

Description, Parameters, Application
Application: interior stairs (inside the building)
Load capacity: maximum load per step 200 kg
Weight: A set of stairs / a set of 14 elements 210 kg
Type of stairs: single-beam stairs (modular)
Type of application: modular stairs, universal positioning and use, straight, left-handed, right-handed
Type of rooms: for small, medium and large rooms
Type of construction: modular metal 180

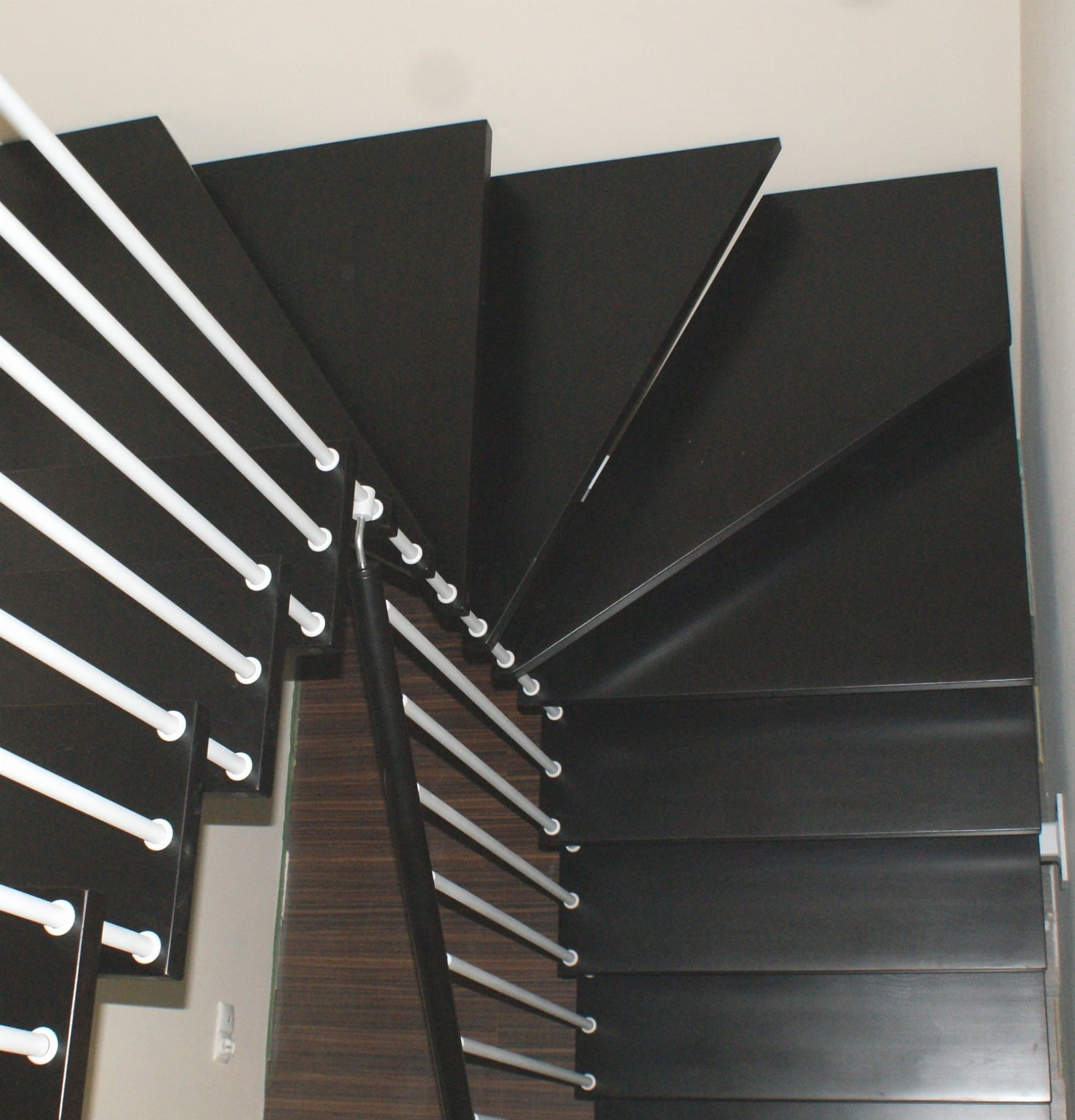

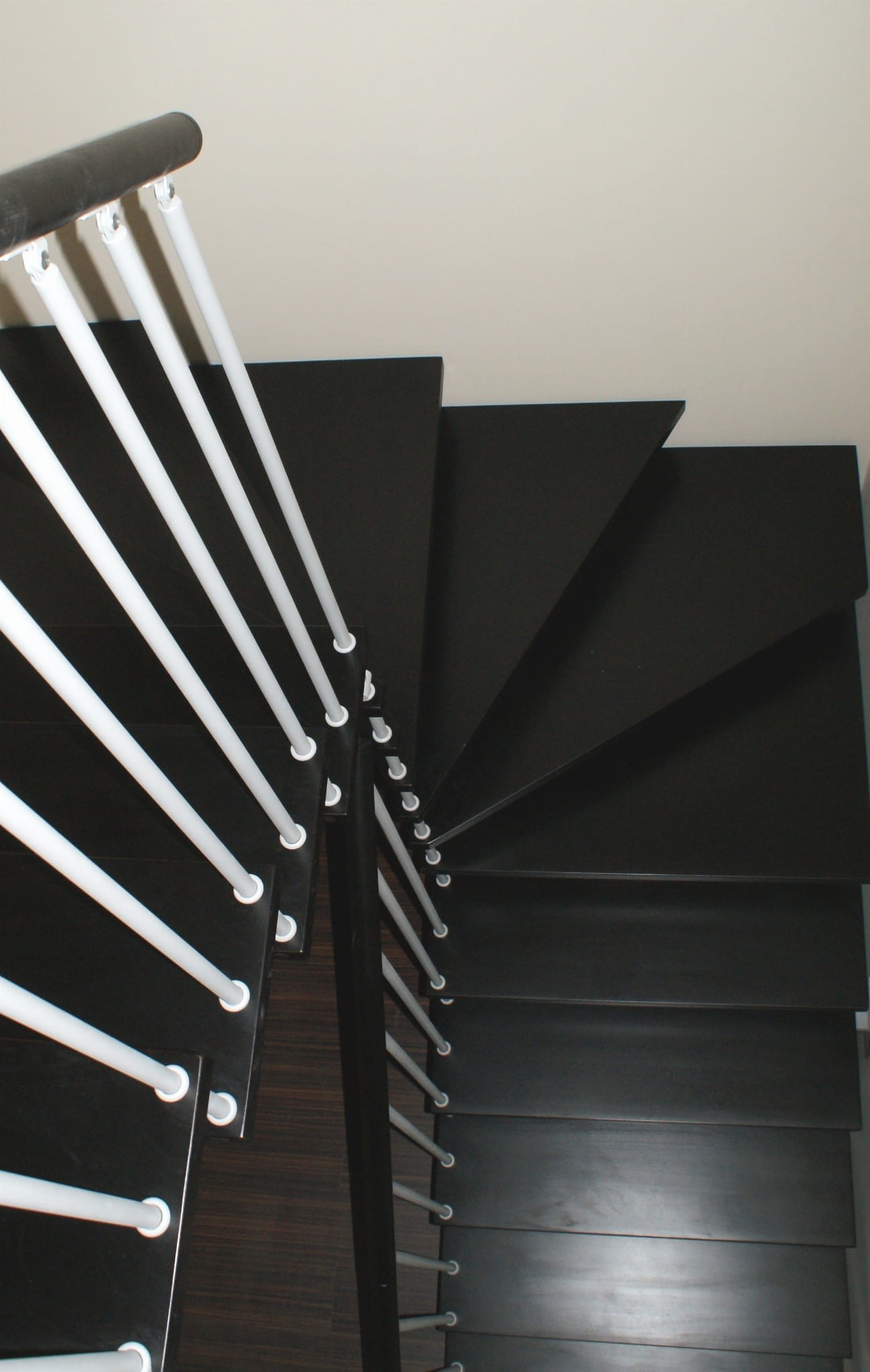

Wood finish: included in the price of the stairs (illustrative photo on beech / BR-2441 / Venge) or colored in the selected color from the wood color palette
Configuration, layouts: it is possible to use the U-180 stairs in 66 layouts

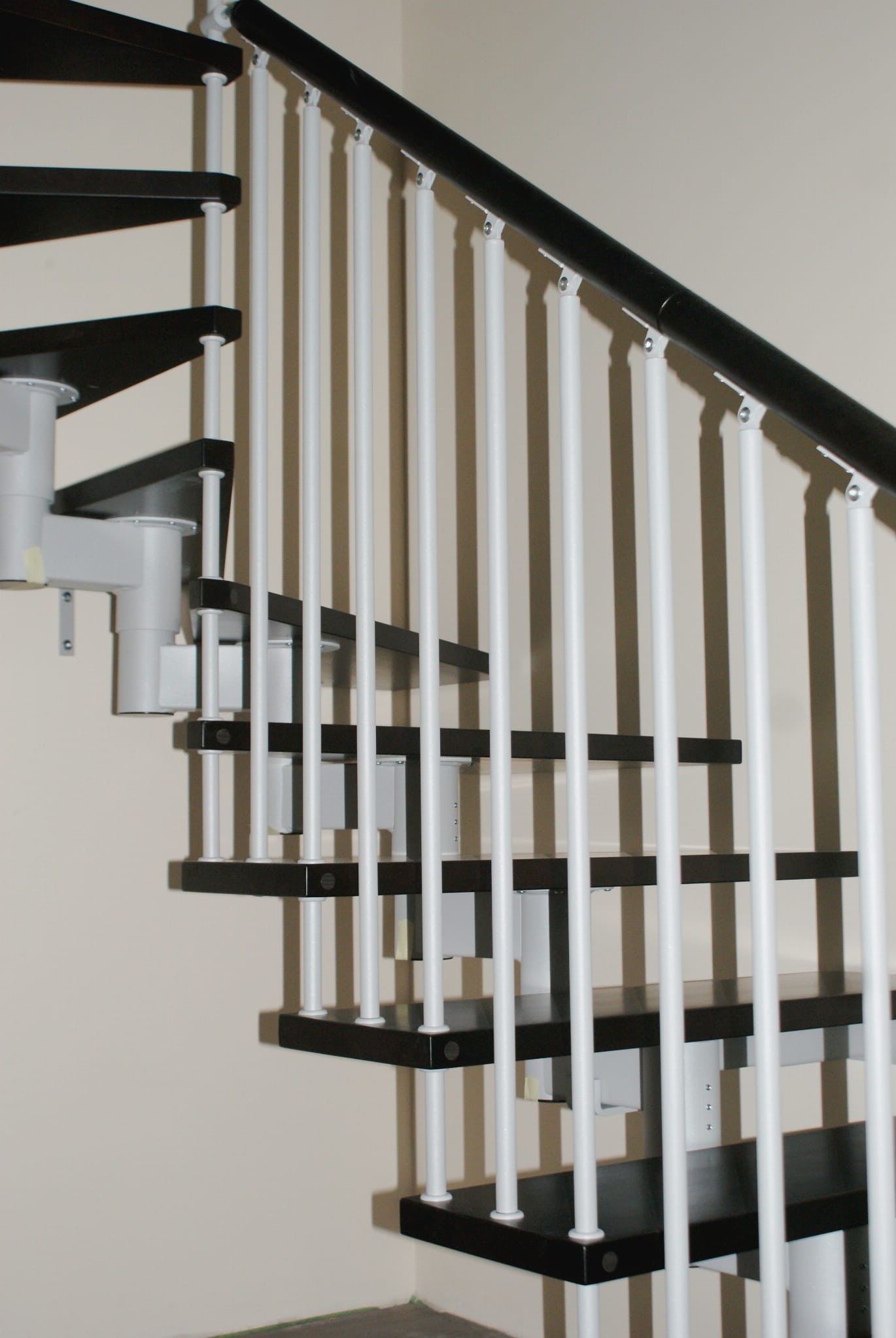

Railing type: 22 mm vertical balusters
Producer: Polish producer of modular metal stairs CORA system

Important information regarding the safe use and application of the stairs:
The stairs should partially run against the wall. They must not be more than 5 cm away from the wall. It is related to the safety of using the stairs. An anchor to the wall is essential.
If the stairs are located as free-standing, it is advisable to use:
- supporting column,
- balustrade on both sides of the stairs,

Technical description
height: 263/345 cm,
number of elements: 14 pieces / 15 levels
step height: adjustable 17.5 / 23.0 cm,
simple step size: 240 (180 + 60) mm
step thickness: 40 mm


hole in the ceiling: minimum 1280x 1380mm


metal color: silver matt structure
width of the run:
- treatment U-180: 700/700/700 mm
type of wood: solid beech,

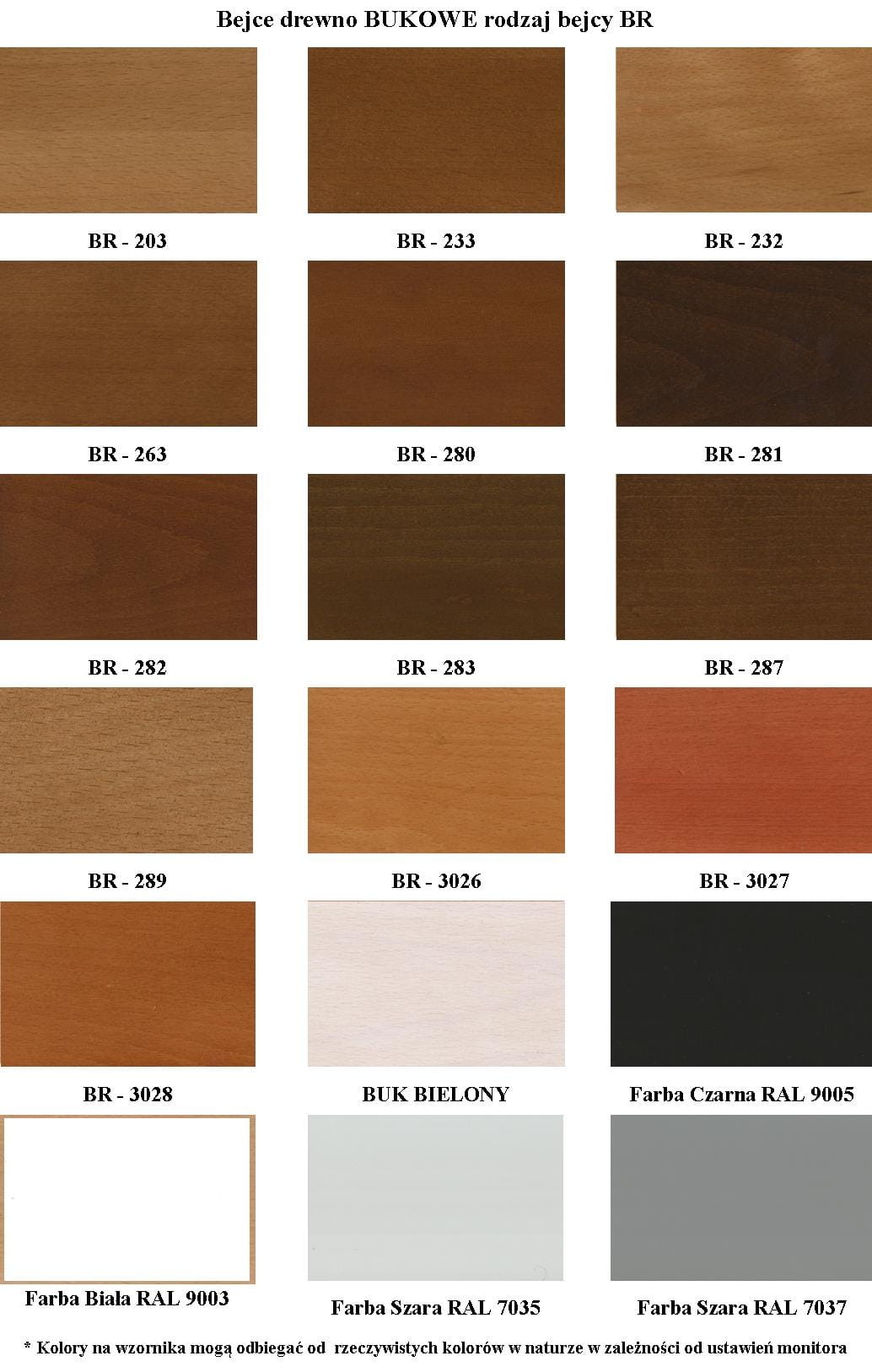

wood color: pictorial photo of the stairs included in the price of the stairs (na beech / BR-2441 / Venge). Other colors to choose from the wood color palette
Modular construction: 180 metal
One-sided balustrade
vertical balusters (metal) 22 mm
recessed into steps
3 pieces per step
50 mm wood handrail

Examples of heights, sizes
Floor to floor 193 - 253 cm - 10 steps / 11 high (- 4 steps)
Floor to floor 210 - 276 cm - 11 steps / 12 high (- 3 steps)
Floor to floor 228 - 299 cm - 12 steps / 13 high (- 2 steps)
Floor to floor 245 - 322 cm - 13 steps / 14 high (- 1 step)
Floor to floor 263 - 345 cm - 14 steps / 15 high (Standard)
Floor to floor 280 - 368 cm - 15 steps / 16 high (+ 1 step)

Unusual stairs to size to be agreed:
Unless you can adjust the stairs according to the following configurations, we will make custom-made stairs in the diagrams.
We will make a design, stair valuation based on:
- sent views of the building cross-section with actual dimensions,
- or making a sketch with actual dimensions and sending it to the e-mail: [email protected]
We will prepare a special offer in our online store in the category: on request.

Time limit for completion
- Delivery of stairs without assembly - 2 / 4 weeks
- Delivery of stairs with assembly - 4 / 8 weeks

CONTACT; Technical advice directly from 9.00 a.m. to 7.00 p.m.

Tel / mobile: +48 509 046 444. Tel / fax: 0048 65 511 92 16, e-mail: [email protected]

Salon and exhibition (Poland) ul. Gostyńska 61, 64-000 Kościan
